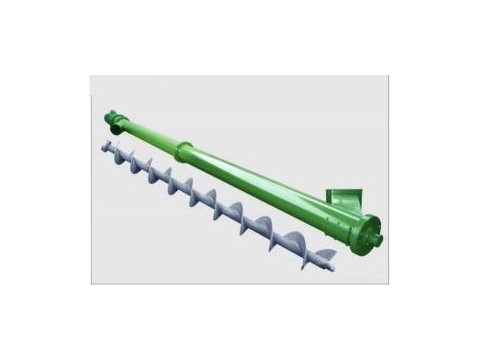

TLSS Series Screw Conveyer
The modular CA Trough Screw Conveyor system is highly versatile offering numerous solutions for conveying powdery or granular materials. They are widely used all over the world in industries such as pet food, plastics processing, soap, washing powder and detergent processing, animal feed milling, wood processing, chemicals, environmental technology, cement, lime and gypsum processing, as well as mining.
Explain:
It is a kind of fixed,sealed and continuous conveying equipment whose operating principle is driving the materials forward by utilizing the rotation of screw blade.It is featured with small covering area,satisfactory sealing performance,free of dust,low noise,simple structure,stable and reliable operation,etc.It can be installed on the ground or ceiling.Multiple feeding&discharge are allowed;besides,both horizontal conveying and small-angle inclined conveying are allowed.
Characteristics:
1.It is a kind of general equipment,with both horizontal conveying and inclined conveying allowed.
2.Packing auger blades with different thicknesses are adopted to meet different requirements for wear resistance.
3.Wear-resistant sliding bearing is hung in the middle.
4.Static balance verification is conducted after connection of packing auger and shaft.
Spec. & model |
Output (t/h) |
Max. speed (r/min) |
Screw blade diameter (mm) |
Screw pitch (mm) |
Shaft power per meter (kw) |
TLSS16 |
6 |
112 |
160 |
160 |
0.1 |
TLSS20 |
10 |
100 |
200 |
200 |
0.15 |
TLSS25 |
18 |
90 |
250 |
250 |
0.20 |
TLSS32 |
25 |
80 |
320 |
320 |
0.25 |
TLSS40 |
48 |
71 |
400 |
355 |
0.35 |
TLSS50 |
70 |
65 |
500 |
400 |
0.4 |
If you have any questions, please contact with us directly. Welcome you can visit our Factory.For inquiry,Please send mail directly to us.
Looking for ideal High Efficiency Screw Conveyer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Simply Equipped Screw Conveyer are quality guaranteed. We are China Origin Factory of High Efficiency Screw Conveyor. If you have any question, please feel free to contact us.Product Categories : Supporting Flour Machine Equipment > Flour Machine Conveying Equipment
