Simply Equipped High Efficiency Scraper Conveyor
Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: 2021-01-25 [Expired]
Updated on: 2018-12-05 11:07
Hits: 37453
Company Detail


Details

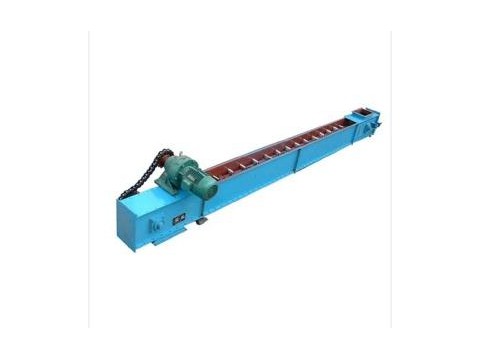

TGSS Series Scraper Conveyer

Characteristics:

1.It is designed as per the most advanced elements in the world,mainly featured with large output,little residuals and durable performance;

2.Horizontal conveying and inclined conveying with an angle of less than 15° are allowed;besides,multiple feeding&discharge can be achieved;

3.It can be used in flour mill,grain depot,oil plant,port and chemical plant for conveying of granular&powdery materials.



Explain:

Scraper conveyer is a kind of continuous conveying equipment for conveying of powdery,guanular&small-piece materials,with both horizontal conveying,its scraper chains are completely buried in materials.It is featured with simple structure,reliable operation,low cost and long conveying distance,and it can also convey hot materials;therefore,it is widely used in grain,construction materials,chemical engineering,metallurgy,coal,mining,machinery and other industries.


Model

Output (t/h)

Slot width (mm)

Chain line speed

TGSS16

10- 25

160

0.16- 0.32

TGSS20

12- 40

200

0.16- 0.32

TGSS25

20-50

250

0.16- 0.32

TGSS32

45- 85

320

0.2- 0.32

TGSS40

65- 120

400

0.2- 0.32



conveyor

scraper conveyer



If you have any questions, please contact with us directly. Welcome you can visit our Factory.For inquiry,Please send mail directly to us.




Looking for ideal High Efficiency Scraper Conveyor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Simply Equipped Scraper Conveyor are quality guaranteed. We are China Origin Factory of Flour Scraper Conveyor. If you have any question, please feel free to contact us.

Product Categories : Supporting Flour Machine Equipment > Flour Machine Conveying Equipment
