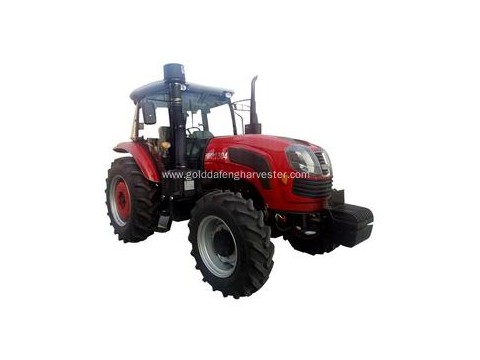

enhanced gearbox 130hp self-propelled wheeled tractor

Click image to view original image
Brand: GDF1304
Type: Wheel Tractor
Usage: Farm Tractor
Drive Wheel: 4WD
Price: Negotiable
Min.Order: 1
Supply
Delivery: Shipment within 10 days since the date of payment
Address: China
Valid until: 2021-01-26 [Expired]
Updated on: 2018-12-06 12:42
Hits: 14184
Company Detail


Details

A tractor is an engineering vehicle specifically designed to deliver a high tr-active effort (or torque) at slow speeds, for the purposes of hauling a trailer or machinery used in agriculture or construction. Most commonly, the term is used to describe a farm vehicle that provides the power and traction to mechanize agricultural tasks, especially (and originally) tillage, but nowadays a great variety of tasks. Agricultural implements may be towed behind or mounted on the tractor, and the tractor may also provide a source of power if the implement is mechanized.


Main feature:

1. Super power: equipped with famous domestic brand engine with low oil consumption and good large reserve power.

2. High working performance: multiple gears with wide speed range. PTO shafts speed can also be combinations of 760/850 r/min can meet various operation demands, and work continuously.

3. High reliability: composed 16F+8R gearbox is adopted meshing gear shift with durability, helical gear rolling. Using of independent fuel tank in hydraulic lifting system which can make the hydraulic fluid is clear as well as equipped with dual-stage clutch.

4. Comfortable driving: new streamlined appearance, fully enclosed cabin, broad vision, dustproof and driving comfort.



1304 Wheeled Tractors

Item

Figure

Model

1304

Overall dimension(L*M*H)mm

5060*2330*2983

Wheel track(Front tire/rear tire)mm

1760/1730

Gears

16F+8R

Lifting capacity(KN)

27

Engine

Famous domestic brand(HuanchaiGuo/YuchaiGuo)

The number of Cylinder

6

Engine rated power(KW)

95.6

Tire type(front tire/rear tire)

13.6-24/16.9-34

PTO axle splines number

8

Standard PTO speed R/MIN

760/850
