With a large demand of high automation farm machines. While Gold Dafeng Machinery is a forward thinking manufacturing of Premium Quality Farm Machinery with devotion to machine R&D for more than 20 years. Export directly to international farmers and dealers with fast shipping, we have got solid customer base and good reputation. Contact us for any farm machines, you will not be disappointed.

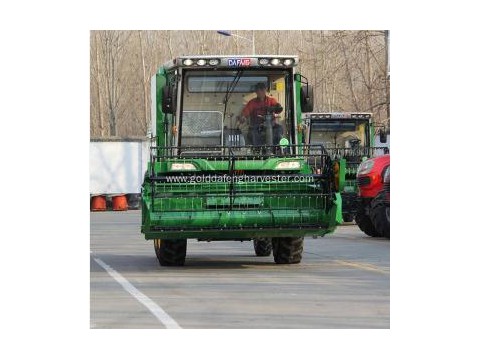

Self-Propelled Wheat Harvester is applied to wheat and rice which can achieve harvesting, threshing, separating and cleaning all at one time. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms.
The cutting platform is equipped at the front of the body, which makes inclining T-shape with the threshing body, is applied to cutting and delivering. Hydraulic controlled lifting of the cutting platform and reel enable the operation more reliable. The threshing and cleaning which includes threshing, separating, cleaning and delivering mechanism etc. is applied to threshing, separating, cleaning and delivering the seeds to the storage box, with the terms in strips and chaffed spread to the ground. The 150 HP engine is located at the top of the cleaning room, which offer the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels.
The cabin includes the operating mechanism and the instrument system which is for the operating and monitoring the working system.
Parameters:
|
Model |
4LZ-8 |
Barn capacity |
2 m³ |
|
Feeding volume |
8KG/s |
Threshing type |
Dual-roll |
|
Working width |
2750mm |
Horse power |
129KW |
|
Working efficiency |
6000-12000㎡/h |
Dimensions |
6700*3140*3380mm (Length*Width*Height) |
1. Gold dafeng IMDI smart manufacture center
Accomplished flexible, small quantity, multiple batches, and customized modes of manufacturing, based on Dafeng`s 20 years` professional manufacturing capability.
2. Agricultural requirement hatching center
Focused on the constant feedbacks and conclusions from the franchises, to refine the most representative requirement such as basic technic conditions and minimum quantities, through communication with the remote video technic tools
3. Customized D&P center
With 20 years` professional capability, lead the technical analysis against the hatching center, to meet the customer`s requirement with the technical support
4. High efficiency demonstration center
Supply all the standards and the customized demonstrations of the agricultural equipment based on the requirement leads from our franchises.
Lead technic training, the farm site demonstration, and seminars activities, and constantly report back to the IMDI center, finally achieves the optimization of the management board.
