We need to know your below information and design according to your requirements:
1) Load capacity
2) Lifting height
3) Platform size

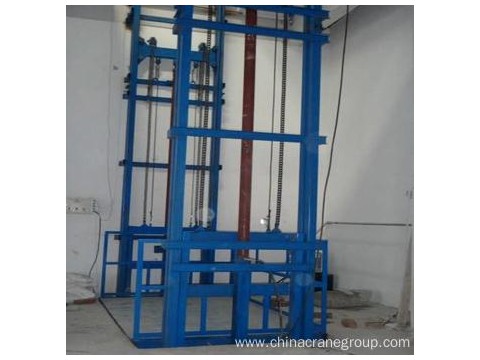

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications.The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. machine are available in capacities from 100kg. to 100,000kg.
Our Products includes the following:
1, Crane accessories
2, Electric Hoist
3, Single - beam cranes
4, Double - beam cranes
5, Bridge Crane
6, Gantry Crane
7.Lifting equipment and accessories
We supply crane products all over the globe to a wide range of companies worldwide.
Cargo lift specifications FYI made by us before:
| Model | Capacity(kg) | Vertical Travel(mm) | Min.height(mm) | Platform size(mm) | Matching power(kw) |
| SLT0.5-4.0 | 500 | 4000 | 200 | 1500*1500 | 2.2 |
| SLT1.0-5 | 1000 | 5000 | 200 | 1800*2000 | 3 |
| SLT2.-8.0 | 2000 | 8000 | 200 | 2000*3000 | 4 |
| SLT3.0-10.0 | 3000 | 10000 | 240 | 2500*3000 | 5.5 |
| SLT5.0-5.0 | 5000 | 5000 | 300 | 3000*5000 | 7.5 |
