BWG22 Electro Galvanzied Iron Wire for Construction

Click image to view original image
Brand: BAIYI
Price: 1.00USD/Ton
Min.Order: 25 Ton
Supply 80000 Ton
Delivery: Shipment within 25 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-03-15 10:26
Hits: 17738
Buy
Company Detail


Details

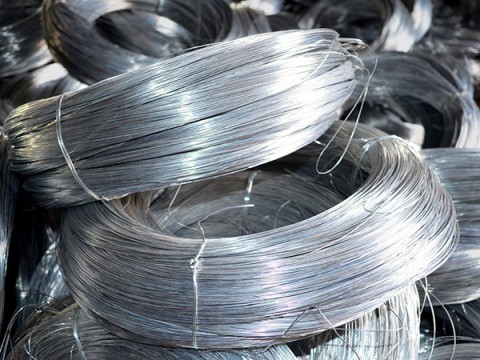

   Galvanized Iron Wire



Introduction

Galvanized Iron Wire can be classified into Electro galvanized wire and Hot-dipped galvanized iron wire according to the difference zinc coating process.Most galvanized iron wire are used in construction,or daily use as binding materials,weaving of galvanized wire mesh,craftwork,etc.


Specification

Material:Low carbon steel Q195
Diameter: 0.71mm
Tensile Strength:340-500/mm2
zinc coating:20-240g/m2
Weight: 1kg to 100kgs per coil or According to customer's request
Packing: Inside plastic film+Outside hessian(or Outside woven bag)


Production Sequence

Steel rod coil→Wire Drawing→Wire Annealing→Rust Removing→Acid Washing→Boiling→Zinc Feeding→Drying→Wire Coiling



Galvanzied iron wire size

wire gauge size SWG(mm) BWG(mm) metric(mm)
8 4.06 4.19 4.00
9 3.66 3.76 _
10 3.25 3.4 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14 2.03 2.11 -
15 1.83 1.83 1.80
16 1.63 1.65 1.65
17 1.42 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.89 0.90
21 0.81 0.813 0.80
22 0.71 0.711 0.70
