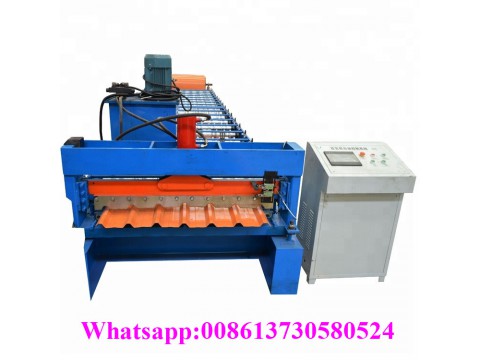

maquina para fabricar calaminas
Machine description:
What is the specification of maquina para fabricar calaminas?
| Item | Specification |
| Name |
maquina para fabricar calaminas |
| material | color steel,GI,PPGI |
| Processing thickness | 0.3-0.8mm |
| Diameter of shaft | Φ80mm |
| Electric tension | as the customer's requirements |
| Roller |
45# steel chrome plating chromium |
| Processing precision | within 1mm |
| Transmission | by chain link(1inch) |
| Hydraulic cutting | controlled by PLC |
| PLC | DELTA(TAIWAN) |
| Material of blades |
Cr12 quenched |
| Switch | CHNT |
| Roller station | to the finnal design |
What's the Main components of maquina para fabricar calaminas?
|
Decoiler |
1set |
|
Feeding & guiding device |
1set |
|
Main roll forming machine |
1set |
|
Hydraulic pressing system |
1set |
|
Hydraulic cutting system |
1set |
|
Controlling system |
1set |
|
Run out table |
1set |
Related machinery
1.Different types roof profile drawing forming machine ;
2.Curve roof roll forming machine ; 3.Ridge cap roll forming machine ;
4.Floor deck roll forming machine ; 5.Rain gutter roll forming machine ;
6.Down pipe roll forming machine ; 7.Highway guardrail roll forming machine ;
8.Roller shutter door forming machine ; 9.Door frame roll forming machine ;
10.CZU purlin roll forming machine ; 11.Light keel roll forming machine ;
12.Slitting machine (lines); 13.Shearing/bending machine ;
14.Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils) and so on .
