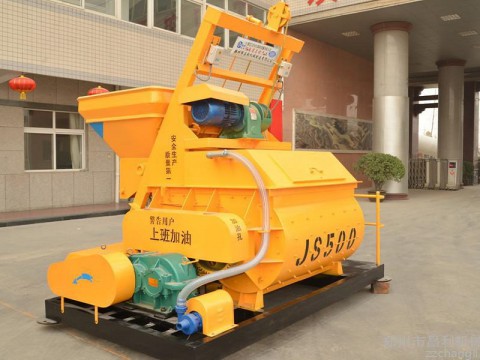

JS500 Forced Twin Horizontal Shaft Concrete Mixers
Product feature and advantages:
JS500 Forced Twin Horizontal Shaft Concrete Mixers adopts advanced integrated shaft mixer technology and quadruple sealing technology. It is manufactured by imported CNC equipment and has excellent quality. It is an advanced mixer type.
JS500 Forced Twin Horizontal Shaft Concrete Mixers , referred to as JS500 mixer, is a cost-effective concrete mixing equipment specially designed by our company for small and medium-sized customers. The mixer has good mixing effect and convenient maintenance. It is a good choice for customers with small squares of concrete.
Product Composition:
1. Mixing system
JS500 Forced Twin Horizontal Shaft Concrete Mixers consists of motor, pulley, reducer, open gear, mixing drum stirring device, oil supply device and other components. During operation, the motor drives the secondary gear reducer, and the two shafts of the reducer drive the two horizontal agitating shafts to reverse the constant speed by two pairs of open gears.
2. Feeding system
JS500 Forced Twin Horizontal Shaft Concrete Mixers loading system consists of hoisting mechanism, loading frame, hopper, feeding nozzle and other components. The brake motor ensures that the hopper reliably stops at any position during full load operation. The braking torque is adjusted by the large nut of the rear seat of the motor.
3. Water supply system
JS500 Forced Twin Horizontal Shaft Concrete Mixers water supply system consists of water pump, throttle valve, cleaning and sprinkler. The throttle valve regulates the flow of water and the total amount of water supplied is regulated by a time relay.
4. Discharge system
The JS500 concrete mixer discharge system consists of a discharge door, cylinder, or hydraulic cylinder. It has three structures: hydraulic control, pneumatic control, and manual control. The discharge door is installed at the bottom of the mixer, and the motor discharge is realized by a cylinder or a hydraulic cylinder.
5. Electrical system
The electric control circuit of JS500 concrete mixer is equipped with air switch, fuse and thermal relay, which has the functions of short circuit protection and overload protection. All control buttons and air switch handles and indicators are placed on the distribution box door with a door lock. The electrical components in the distribution box are mounted on a single edge plate, which is safe and reliable, easy to operate and maintain.
