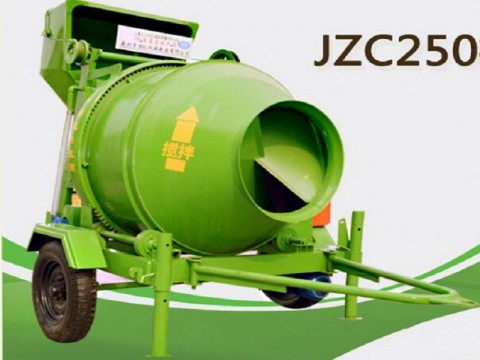

JZC250 Power-Driven Self-Fall Concrete Mixer
Application:
JZC250 Power-Driven Self-Fall concrete mixer belongs to the self-falling double cone reverse discharge mixer. It is driven by the ring gear to drive the mixing drum. The working mode is forward rotation mixing, reverse discharge, mixing plastic concrete and semi-dry concrete, suitable for small and medium-sized Construction sites, roads, bridge works and concrete component plants.
JZC250 Power-Driven Self-Fall concrete mixer is a self-falling double cone reverse discharge mixer. It is designed according to the standard of GB/T9142-2000 "Concrete Mixer". The mixer is reliable and powerful. It is a more advanced model.
Advantages:
1. High production efficiency and good mixing quality
2. Beautiful appearance and novel structure
3. Light weight and easy to move
The mixer is widely favored by users and is a more advanced model.
Product parameters:
|
Name: |
JZC250 Power-Driven Self-Fall concrete mixer |
|
Feed capacity: |
320L |
|
Discharge capacity: |
250L |
|
Productivity: |
6-8m3/h |
|
Mixing power: |
4 kw |
|
Tire specifications: |
6.5-16 |
|
Water Pump power: |
0.55 kw |
|
Water supply accuracy: |
≤ 2% |
|
Mixing drum speed: |
17 rpm |
|
Aggregate size: |
60mm |
|
Large speed: |
20kg/h |
