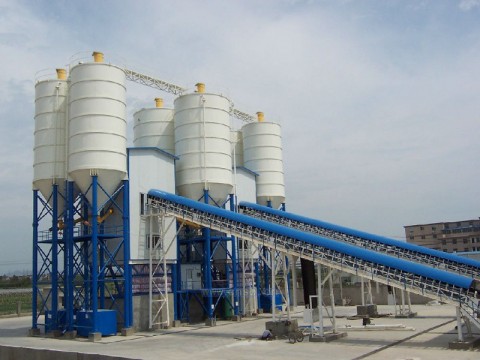

HZS60 Medium Concrete Mixing Plant
Application:
HZS60 medium concrete mixing plant has advanced technology and excellent performance. It adopts advanced JS1000 mixing host, strong mixing, short mixing time and high work efficiency, making it an ideal choice for small and medium-sized customers.
Procuct advantage:
Compared with similar products on the market, HZS60 medium concrete mixing plant has advantages:
1. Adopts multiple shaft end seal protection device and wind pressure seal protection device to stir the main machine to leak slurry;
2. Special electric lubricating oil pump, four vertical pump cores supply oil to four shaft heads respectively, without diverter valve;
3. French original TE contact switch, reliable and durable;
4. The screw machine is made of high quality steel pipe with good rigidity;
5. The control system is equipped with safety switches in many places, which is safe.
Product parameters:
|
Name |
HZS60 concrete mixing plant |
|
|
Productivity（m³/h） |
60 |
|
|
Mixing machine |
Model |
JS1000 |
|
Aggregate particle size (mm) |
≤80 |
|
|
Host power（kw) |
2*18.5 |
|
|
Productivity（m³/h） |
50-60 |
|
|
Batching bin |
Model |
PLD1600 |
|
Power (kw |
30 |
|
|
Weighing range and accuracy |
Aggregate (kg) |
±2% |
|
Cement (kg) |
±1% |
|
|
Fly ash (kg) |
±1% |
|
|
Water (kg) |
±1% |
|
|
Admixture (kg) |
±1% |
|
|
Total power (kw |
130 |
|
|
Discharge height (m) |
4.1 |
|
Product detail:
1.Storage system
Cement silo
The cement silo is a closed storage tank for materials such as cement and fly ash. The tank is equipped with a material level system to display the position of the material. The arching device can remove the agglomeration caused by material deposition. The cement silo and the screw conveyor can transport the materials to various locations. The silo is easy to install and reliable, and is an ideal match for various mixing stations.
2.Conveyor system:
The conveying system of HZS60 concrete mixing plant is divided into aggregate conveying and powder conveying: the conveying method of aggregate is the feeding of belt conveyor, and the conveying mode of cement and admixture is screw conveyor and pneumatic conveying.
Screw conveyor
HZS60 concrete mixing plant adopts LSY type screw conveyor. The conveyor is designed and manufactured according to JB/T 7679-95 "screw conveyor" standard. When the screw shaft rotates, the gravity of the material and the friction generated by the wall of the tank make the material Move forward under the push of the blade.
Belt conveyor
It consists mainly of two end rollers and a closed conveyor belt tightly placed on it. The drive roller is driven by a motor through a speed reducer that is dragged by friction between the drive roller and the conveyor belt.
3.Control System
The whole station of HZS60 concrete mixing plant is controlled by industrial computer. It can be controlled automatically or manually. It is easy to operate and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print the report data.
4.Metering system:
sensor
High-precision imported sensor, accurate weighing and fast response.
5.Pneumatic system
Pneumatic butterfly valve
The sealing is strict, the action is reliable, the structure is simple, the volume is small, the weight is light, and the cost performance is high.
The pneumatic system is the execution device of the action of HZS60 concrete mixing plant. Its function is to switch the aggregate silos, the mixer discharge door and the cement scale discharge door in time according to the instructions issued by the industrial microcomputer, and break the cement in the cement silo. The additive is blown to ensure accurate measurement of various aggregates, cements and additives, and the loading task of the finished material is completed.
