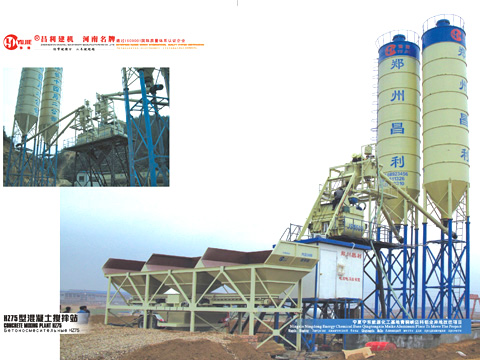

HZS75 Medium Concrete Mixing Plant
Introduction:
HZS75 medium concrete mixing plant is a concrete mixing equipment designed by our company with exquisite craft design and drawing on the advanced manufacturing experience of foreign countries. The whole station has the advantages of high mixing quality, stirring strength, environmental protection and safety, and is the user's concrete production. Preferred equipment.
Advanced technology:
The HZS75 medium concrete mixing plant has the following advantages:
1. Gantry pentahedron machining center
The production of the mixing machine adopts the industry's outstanding gantry-type pentahedron machining center, which makes the machine's concentricity and precision reach a new height;
2. Heat treatment center
The introduction of Sino-Japanese joint venture heat treatment equipment greatly increases the life and hardness of the mixing unit parts;
3.ERP remote fault diagnosis
Advanced GPS/GPRS technology for remote technical troubleshooting such as fault diagnosis and historical inquiry;
4. Computer self-healing system
A special customized computer system for the concrete mixing industry, with self-healing function, is more secure and stable.
Features:
1.Mixing system
The mixing system is composed of electric motor, belt conveyor, reducer, mixing tank, mixing device, transmission system, oil supply system etc. The mixing machine adopts JS1500 twin-shaft forced mixer, which is suitable for concrete with aggregate particle size less than or equal to 80mm.
2, Metering system
The mixing plant equipment adopts the weighing system of PLD seriers concrete batching machine, which consists of storage hopper, weighing hopper and transportation mechanism. The weighing system of powder, water and admixture is composed of weighing hopper and sensor respectively, and the weighing control is completed by the control system.
3. Feeding system
Aggregate supply system. This part is composed of the feeding mechanism and weighing system of concrete batching machine, and can be equipped with three kinds of aggregates.
Powder supply system. This part consists of cement silo and cement screw conveyor. The cement is directly transported from the cement silo through the screw conveyor to the cement weighing hopper for metering.
4.Electrical control system
HZS75 mixing station equipment electrical control system is mainly composed of console and AC contactor as the core of the strong electric control, the complete system is installed in the control room, can complete the automatic, semi-automatic control of the whole process of batching, lifting, mixing, unloading production .
5.Pneumatic system
The air source is supplied by the W-1.0/10 type air compressor, and the mirror filtered water and the refueled air enter the branches through the air separation bag. The gas path is divided into aggregate feeding, mixer discharging, cement discharging, cement silo breaking, and admixture stirring.
Technical Parameters:
Model |
HZS60 |
HZS75 |
HZS90 |
Theoretical productivity |
60 m³/h |
75 m³/h |
90 m³/h |
Mixing host |
JS1000 |
JS1500A |
JS1500B |
Mixing host power |
21.6KW |
45KW |
45KW |
Maximum aggregate size |
Gravel 60mm Pebble 80mm |
||
Cement screw pump |
φ219mm*8m |
||
Feeding method |
Electric feeding |
||
Batching machine |
PLD1600 |
PLD2400 |
PLD2400 |
Aggregate metering |
1.2m³ |
||
Cement metering |
250kg |
1000kg |
1000kg |
Water (flow metering) |
150kg |
||
Feeding height |
2.82m |
||
Discharge height |
3.8m Pneumatic discharge |
||
Dimensions (L X W X H) |
11690 X5000 X10000 |
7010 X7860 X12000 |
9645 X3436X9700 |
Cement silo |
100T With corresponding legs |
60T With corresponding legs |
60T With corresponding legs |
Total power |
≥107.7KW |
≥108.95KW |
≥145.6KW |
Feed capacity |
1600L |
2400L |
2400L |
Discharge capacity |
1 m³ |
1.5 m³ |
1.5 m³ |
Control mode |
Semi-automatic, manual |
||
Work cycle time |
60S |
75S |
60S |
