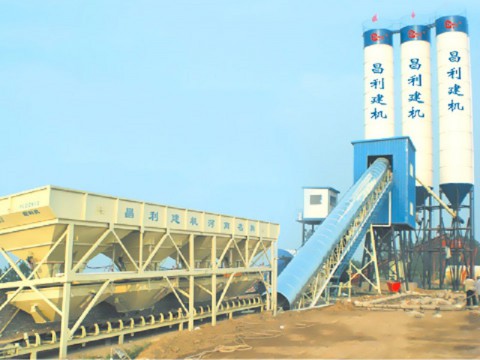

HZS90 Medium Concrete Mixing Plant
Application:
HZS90 concrete mixing plant adopts quality JS1500 mixing host, clever assembly design and modular structure. The whole station is quick to install, low energy consumption and high efficiency. It is a good product in the concrete machinery industry.
HZS90 concrete mixing plant is a kind of mixing station equipment with wide application range. It is widely used in large and medium-sized prefabricated component factories and industrial and civil construction projects such as roads, bridges, water conservancy and docks.
Technical Parameters:
|
Model |
HZS60 |
HZS75 |
HZS90 |
|
|
Theoretical productivity |
60 m³/h |
75 m³/h |
90 m³/h |
|
|
Mixing host |
JS1000 |
JS1500A |
JS1500B |
|
|
Mixing host power |
21.6KW |
45KW |
45KW |
|
|
Maximum aggregate size |
Gravel 60mm Pebble 80mm |
|||
|
Cement screw pump |
φ219mm*8m |
|||
|
Feeding method |
Electric feeding |
|||
|
Batching machine |
PLD1600 |
PLD2400 |
PLD2400 |
|
|
Aggregate metering |
1.2m³ |
|||
|
Cement metering |
250kg |
1000kg |
1000kg |
|
|
Water (flow metering) |
150kg |
|||
|
Feeding height |
2.82m |
|||
|
Discharge height |
3.8m Pneumatic discharge |
|||
|
Dimensions (L X W X H) |
11690 X5000 X10000 |
7010 X7860 X12000 |
9645 X3436X9700 |
|
|
Cement silo |
100T With corresponding legs |
60T With corresponding legs |
60T With corresponding legs |
|
|
Total power |
≥107.7KW |
≥108.95KW |
≥145.6KW |
|
|
Feed capacity |
1600L |
2400L |
2400L |
|
|
Discharge capacity |
1 m³ |
1.5 m³ |
1.5 m³ |
|
|
Control mode |
Semi-automatic, manual |
|||
|
Work cycle time |
60S |
75S |
60S |
|
