Description：

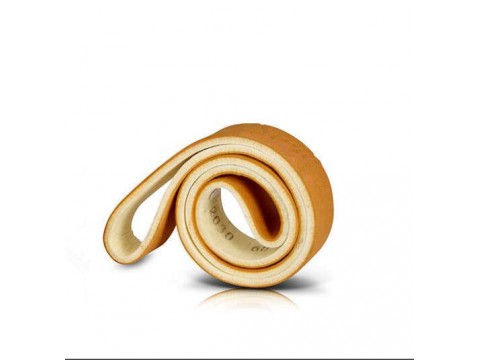

PBO belts are not required for every production line, and only the production line that produces large, irregular aluminum profiles is used.When the aluminum profile was extruded from the discharge port, after the initial introduction of cooling, aluminum temperature is still high. To be aluminum from the slide table to the feed station, the felt belt or roller will soon be worn due to high temperatures. In this case, the PBO felt is a better choice. PBO belt&roller with the middle of the five-story high temperature fabric,that will make the conveyor belt tension stronger.
Specification：
Color:Brown+Yellow
Temperature Resistance:600℃
Material:PBO+Kevlar+one layer Nomex base cloth
Available Size(mm):Width: 20---2000,Length: 540---13500,Thickness: 6---12
Advantage
1 Heat resistant up to 600℃;
2 No elongation under high tension and heavy load;
3 No seam, splice or joints: no breaks due to weak zone,High density structure;
4 Smooth and even belt surface: scratch-free extrusions;
5 Excellent belt tracking on the cooling table;
6 Capability of withstanding high temperatures thanks to a batt of aramidic fibres needled on an endless base fabric;
7 Low heat conductivity and high density with good wear resistance and impact resistance property under heavy conditions;
8 No generation of decomposed gases nor deposition to the extruded product through melting;
9 The belt is woven endless, and therefore needs no further seam or splice.
Application：
1.Applied to high-temperature cooling table in aluminum extrusion profile plant,the max temperature resistance 600℃
2.Aluminum extrusion's discharge port and the fist level felt type cooling table
3.This kind of endless felt belt is main used for the felt type cooling table in the Aluminum Extrusion Industry.
