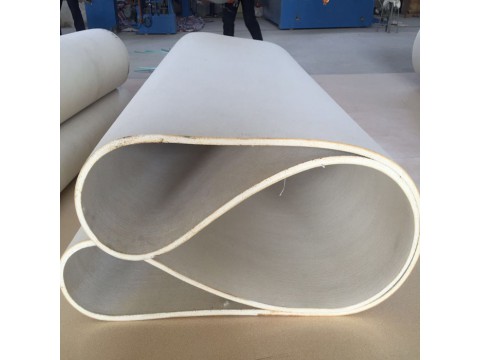

Heat Transfer Printing Machine Used Endless Nomex Felt Belt

Click image to view original image

Brand:	HUATAO
Price:	1.00USD/m2
Min.Order:	1 m2
Supply	1000000 m2
Delivery:	Shipment within 3 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2019-09-27 18:15
Hits:	25312

Company Detail

HUATAO felt
[Credit File]
Already 0.00 USDSecurity deposit
ContactsFrank Zong(Mr.)
Member [Offline] [Add to my friend] [Send mail]
Phone
Mobile
AreaChina
AddressA-0708,Yihong Building,No 298 Zhonghua North Street,Xinhua District

Details

Description:

The heat-transfer machine blankets’ temperature resistance is 280℃,it is made of imported raw material,blanket with smooth surface, no wandering, not springing, no burr, long service life and shrinkage rate will be controlled within 2%, this kind of endless felt belt is very suitable for all kinds of brand machine.

Specification:

Color:White

Technology:Needled punched

Material:Nomex

Material Feature:Heat Resistant

Thickness:6mm,8mm,10mm

Width:600-3500mm

Length:1800-30000mm

Continual temperature:220℃

Peaking temperature:280℃

Density:2800g/m²-3600g/m²

Advantage

1. 100% nomex raw material

2. The max temperature resistant 280℃

3. Endless type - no joint(Don't worry about the fracture)

4. Misaligned----Our base cloth is use endless industrial silk. Testing report showed the misaligned rate is about ±3mm. enclosed our base cloth for your consideration

5. Shrinkage----The base cloth can control the shrinkage rate in 2.5%--3%.

Application

1. Selection Of Brand Raw Material,Common Specifications Have Temperature 160-180℃ And 220-280℃.

2. The Felt Belt Contains Heat Shrinkable Fiber Material Inside,The Felt Will Automatically Shrink After Heating,Wrapped Tightly.

3. The Belt Surface Formation,Uniform Density,Good Resistance,Long Work Life.

Direction of our felt belt

1. The blanket must be install as the direction of the arrow, fixing both sides of the perimeter

to see if the perimeter is the same.

2. Adjust the machine pressure within 2kg. heat up to 150 ℃, idle for 2 hours; heat up to

170℃, idle for 2 hours; heat up to 190℃, idle 3 hours( important); heat up to 200℃,

idle for 2 hours.

3. Then the belt will suitable for your machine, you can adjust the machine pressure in 3--5kg
