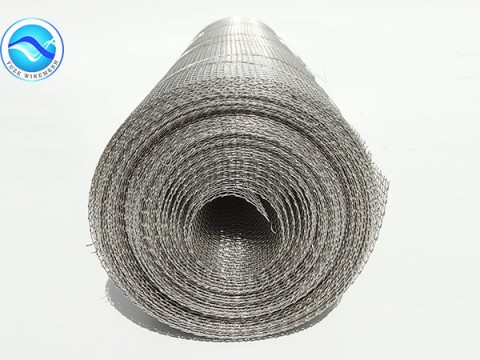

Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; “Tensile Bolt”Bolting Cloth; Crimped Mesh and Welded Mesh.
Regular Plain /Twill Weave Mesh and”Tensile Bolt “ Bolting Cloth are normally for industrial applications.
All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.
Raw material Grade: 304, 304L, 316, 316L, 430, etc.
General uses in different applications:
· Sizing
· Particle separation and filtering
· Particulate sifting
· Safety and equipment protection.
Packing: wrapped with moisture-proof paper, then in wooden cases
Detailed Specifications:
| Plain /Twill Square Woven Mesh1 | |||||
| Mesh count | Wire Dia | Width of Opening | Open area | ||
| Inches | mm | Inches | mm | % | |
| 1X1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
| 8X8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 |
| 10x10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20x20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
| 30x30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40x40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
| 50x50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
