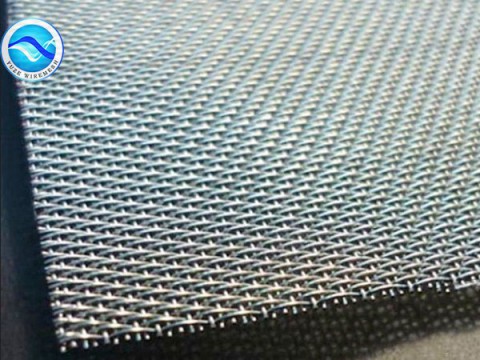

Five Heddle Weave


Five heddle weave provides a rectangular opening. The unique design of this mesh can assist increased drainage and flow properties. This mesh also has a smooth surface on one side, which is widely used in filtration of petroleum chemical industries, in the form of filter ribbons and filter elements.

Material:

The main materials of five heddle weave wire cloth is stainless steel wire SUS304, SUS304L, SUS316 and SUS316L.

Applications:

Five heddle weave offers high flow rates and is suitable for high mechanical loads, featuring a lightly structured mesh surface. Five-heddle woven meshes are popular in applications including pressure and vacuum filters as well as filter candles.

Specifications:

Width of woven wire cloth: 180+0/-2mm

Weaving type: 5-heddle weave

Standard width of stainless steel wire mesh: 1m or 48"

Standard roll length of stainless steel wire mesh: 30m or 100'.

Packingwrapped with moisture-proof paper, then in wooden cases


Meshes per inch (25.4mm)
     Warp x Weft
Wire Diameter(mm) Aperture (mm)
   Warp x Weft
Open Area% Weight(kg/m2)
108 X 59 0.160 0.075 X 0.271 20 1.07
110 X 60 0.160 0.071 X 0.263 19 1.09
38 X 38 0.150 0.518 X 0.518 60 0.43
