Applications:

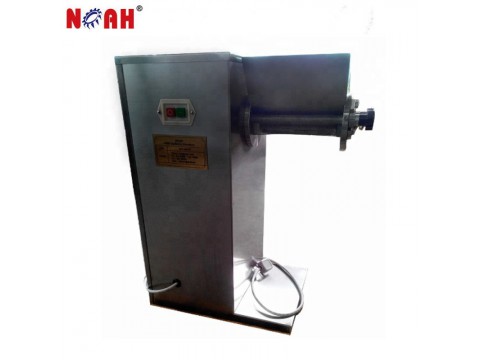

The YK-60 Model Solid Beverage Swing Granulator is used for forming the required granules from moist power material,or for crushing dried block stock into granulates in required size.
Features:
The rotary speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also can be adjustable.
The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
Main technical specifications:
|
Type |
YK60 |
|
Dia. of rotor |
60mm |
|
Effective length of rotor |
184mm |
|
Rotor speed |
46r/min |
|
Production capacity |
20-25kg/h |
|
Rated motor |
0.37 |
|
Overall size |
530 x 400 x 530mm |
|
Net weight |
70kg |
