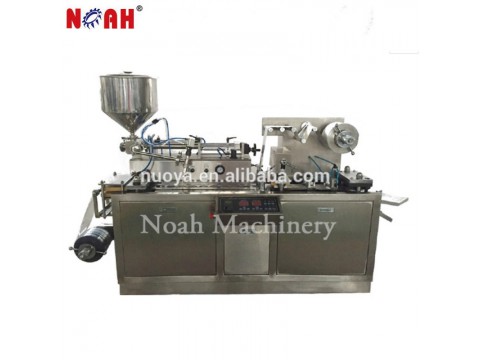

Click image to view original image
Applications
1.The material from steam or dust, thus improve product packing degree, and increase the additional value.
2.The machine is used to produce small quality and many kinds of products.
Characteristic
1. The material is fed automatically. The mould and feeding equipment can be designed as users requirements.
2. Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3. The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
4. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machines life.
5. Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
Main technical data
|
Cutting Frequency (times/min)
|
8-35
|
|
Capacity(strip/h)
|
600-2100
|
|
Max shaping areas and depth (mm)
|
100×60×15
|
|
Stroke (mm)
|
20-70(can be manufactured as user's requirements)
|
|
Standard Sheet (mm)
|
80×57(can be manufactured as user's requirements)
|
|
Air Pressure (Mpa)
|
0.4-0.6Total power380V/220V 50Hz/60Hz 1.8kw
|
|
main motor power
|
0.55PVC
|
|
hard pieces (mm)
|
0.15-0.5×80
|
|
PTP Aluminum Foil (mm)
|
0.02-0.035×80
|
|
Dialysis Paper (mm)
|
50-100g×80
|
|
Overall Dimensions (mm)
|
1560×460×890
|
|
Weight (kg)
|
380
|
