Application

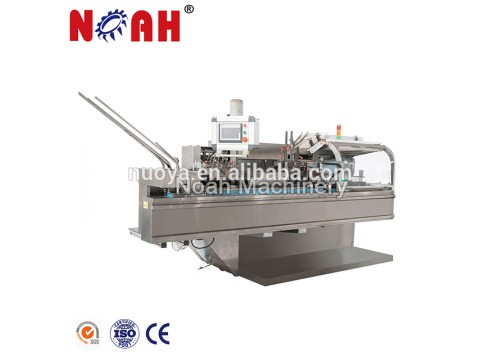

This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light. The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily. The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.
Features
1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.
Main Technical Parameters
|
Model
|
ZH120
|
|
Production capacity
|
50-100 Rotation speed 50-120 b/min
|
|
Packing material
|
the max. size 200×120×70mm
the min. size 50×25×12mm |
|
Box quality
|
250-300 g/m2
According to its dimensions to confirm |
|
Operation manual
|
max .size 260×180mm
min. size 110×100mm |
|
paper weight
|
55-65g
|
|
Volume of consumption
|
20 M3/h(pressure 0.5-0.7MPa)
|
|
Total power
|
1.5KW
|
|
Packing material
|
The max. size 200×120×70mm
|
|
Electric power
|
380V 50HZ
|
|
Overall dimension
|
3700×1350×1700mm
|
|
weight
|
1800
|
