Applications:

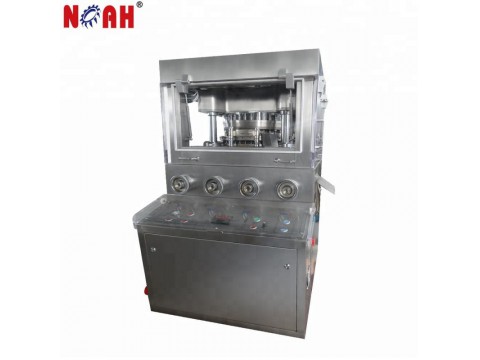

Our machine, ZP35D Automatic Rotary Punch Tablet Making Machine is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, food, and electronics.
(Note: when manufacturing double color piece, it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit)
Features:
1. The cover is made of stainless steel with close type; the inner tablet surface is also applied with stainless steel materials which can keep surface luster and prevent from being polluted crossly, comply with GMP requirement;
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece; side blank could be fully opened, easy to clean and maintain;
3. All monitors and operating components are in good order;
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation; the convenient operation and smooth revolving are safe and correct;
5. Equipped with over-load protection apparatus; when pressure overloads, the machine will stop automatically;
6. Combining machine with electricity, equipped with touching key and screen;
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table;
8. Transmitting system is sealed in the oil box under the main machine which is a separate component; no pollution and easy to send out heat and resist grinding;
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room;
10. Easily-damaging components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which can help to be standard, general and series;
11. The mould could used generally with ZP19, ZP33, ZP35 and ZP37 piece-pressing machine
Main technical specifications:
Dies |
35 sets |
Max. pressure |
80kN |
Max. dia. of tablet |
13mm |
Max. depth of fill |
15mm |
Max. thickness of tablet |
6mm |
Turret speed |
14-36r/min |
Max. production capacity |
150,000pcs/h |
Motor |
4kW, 1,440r/min, 380V/50Hz |
Overall dimensions |
1,240 x 980 x 1,650mm |
Net weight |
1,850kg |
