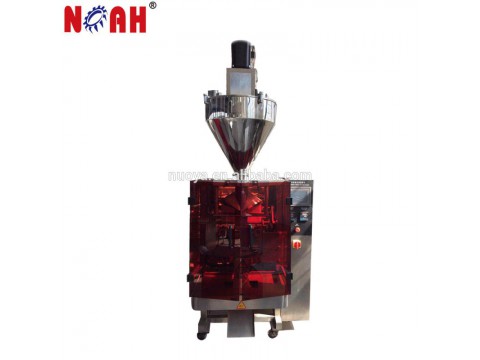

Product Description
Use:
Suitable for automatic packaging powder materials like all kinds of flour ,washing powder, fine sugar,milk powder,glucose,seasoning,food additive,pesticide,and Chinese medicine.
Features:
imported PLC control system, simple-operating, visual touch screw.
Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
Perfect automatic alarming protective function, reduce the consumption up to the lowest.
When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
Type of bag making: according to customer's demand, the machine can produce
pillow bags, punched hanging bags.
Main Technical parameter:
|
Model
|
DXD-520B
|
|
Packing speed
|
15-70bags/min
|
|
Bag-making size
|
(L)80-350mm(W)80-250mm
|
|
Filling range
|
100-3000g
|
|
Film width
|
180-520mm
|
|
Packing materials
|
OPP / CPP PET / PE and other composite materials
|
|
Film thickness
|
0.04-0.08mm
|
|
Air consumption
|
0.36m3/min 0.6MPa
|
|
Power supply
|
AC220V 50Hz 3.5kw
|
|
Machine dimensions
|
(L)1750×(W)1050×(H)2300mm
|
|
Machine weight
|
680kg
|
