Application:

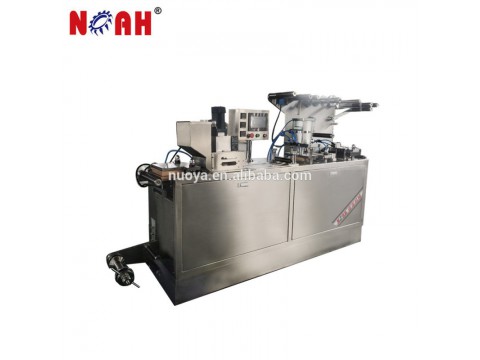

1.The machine DPB-140 Milk Tablet Blister Packing Machine is a new product designed for dosage rooms of hospitals, medium-size and small-size pharmaceutical plants, and health care product plants.
2.It has small size of body, easy operation and full purpose. Stroke can be adjustable, and long durability can be of much performance. It also passed the provincial science and technology appraisal, and has obtained the second prize of science and technology progress by rear-service of RLA.
3.It is widely used in aluminum plastic packing for medicines,foodstuffs,and electronic components.
Characteristics:
1.Bevel wheel reducer to keep long life, lower noise, stable running
2.Adjustable stroke, change freely the size of strip. It is suitable for packing all kinds of specifications
3.Flat-plate structure, any shape of the product can be packed, such as ellipse, square, and triangle
4.Note: it could be equipped with cursor device to track with sealing and frequency control
Main technical data:
|
Cutting frequency (times/min)
|
20-40
|
|
Capacity (strips/h)
|
4,800
|
|
Max shaping areas and depth (mm)
|
130 x 100 x 26
|
|
Stroke (mm)
|
20-120 (can be manufactured as user's requirements)
|
|
Standard sheet (mm)
|
80 x 57 (can be manufactured as user's requirements)
|
|
Air pressure (kW)
|
0.4-0.6
|
|
Total power
|
380V/220V, 50Hz, 3.2kW
|
|
PVC hard pieces (mm)
|
0.15-0.5 x 140
|
|
PTP aluminum foils (mm)
|
0.02-0.035 x 140
|
|
Dialysis paper (mm)
|
50-100g x 140
|
|
Mould cooling:
|
tap water or back water
|
|
Overall dimensions (mm)
|
2,300 x 560 x 1,410
|
|
Weight (kg)
|
800
|
