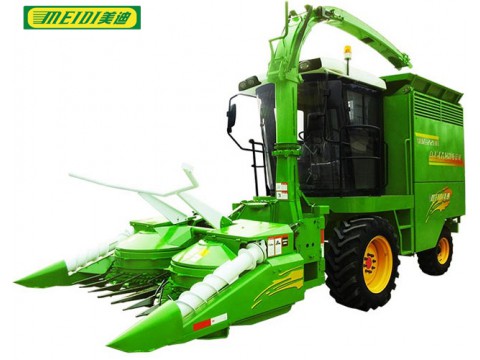

9QZ-2200 Self-Propelled Forage Harvester

9QZ-2200 Self-Propelled Forage Harvester

Meidi 9QZ Series self-Propelled Forage Harvester provides high reliability,high productivity, comforatable operation and versatility. Powerful engine and sharp blades ensure the high productivity. Ecnomic operation design, full hydraulic control system and air-conditioning cab provide comfortable ride experience. Smooth cutting system,feeding system and kernel processor provide high quality silage.Floating header and overload protection clutch help the harvester fit different working conditions.

Working Width    2270mm

Overall Weight    5500kg

Cutting Length    8-25mm (adjustable)

Engine Rated Horsepower 118kw(160hp)

Engine Rated Speed  2300rpm

Cutting Roller Speed    1100rpm

Cutting Blades Quantity   12

Productivity ≥7kg/s

Stubble Length ≤ 150mm

Turning Range ±135°

Shipping Dimension    6300*2480*5000mm

Loss Ratio ≤3%

Transmission Operation     Hydraulic Drive

Ground Speed Gear1: 1-3km/h Gear2: 2.3-7.0km/h  Gear3: 6.4-19km/h   R Gear:1.0-7.0km/h
