Description:

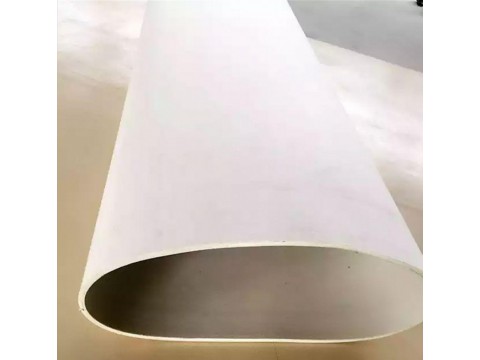

Thermal transfer printing equipment Blanket, also called endless seamless blanket, endless loop blanket tape, is made of 100% nomex fiber, the maximum temperature of 280 degrees Celsius, due to the special process, so there have no joints and it is the real seamless , the surface is more smooth, and has acid, alkali, heat, cold, abrasion, oil, burning resistance, high temperature, flame retardant, heat, non-slip, moisture, anti-static, anti-corrosion and other features.
Specification:
Material：Nomex, Kevlar, Wool, Polyester
Thickness ：2-6mm,6-10mm,10-20mm or as customer’s request
Length：As customer’s request.
Heat-resistance：160°C-280°C
Density：400-1500g/m2,2000g/m 2- 4000g/m 2,4000g/m 2-10000g/m 2or as customer’s request.
Color：Light yellow/White/Off white or as customer’s request.
Width：2m,2.5m,3.5m (according to your demand)
Package：PE bag + Woven bag or as customer’s request.
Delivery Time：Within 5-7 days delivery after receipt your payment
Payment Terms：L/C, T/T, West Union/PAYPAL, etc.
Advantage
1. 100% nomex raw material
2. The max temperature resistant 280℃
3. Endless type - no joint(Don't worry about the fracture)
4. Misaligned----Our base cloth is use endless industrial silk. Testing report showed the misaligned rate is about ±3mm. enclosed our base cloth for your consideration
5. Shrinkage----The base cloth can control the shrinkage rate in 2.5%--3%.
Application
Our seamless nomex felt belt are mainly used for roller transfer machines. All the size could be customized, welcome contact us to get the details.
Direction of our felt belt
1. The blanket must be install as the direction of the arrow, fixing both sides of the perimeter
to see if the perimeter is the same.
2. Adjust the machine pressure within 2kg. heat up to 150 ℃, idle for 2 hours; heat up to
170℃, idle for 2 hours; heat up to 190℃, idle 3 hours( important); heat up to 200℃,
idle for 2 hours.
3. Then the belt will suitable for your machine, you can adjust the machine pressure in 3--5kg
according to your needed and start to printing.
