Brief introduction

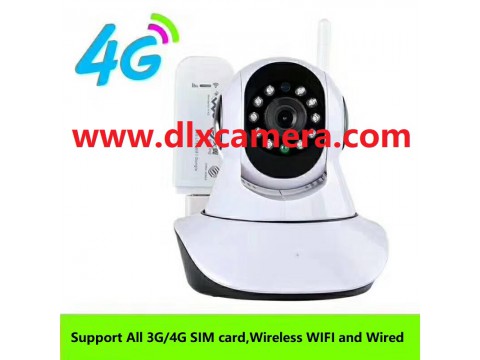

DLX-EHG 4G P2P WIFI PTZ HD IP camera is used for video surveillance, video sharing, baby monitoring and old person care etc. Support wireless/wired connection. Support PTZ and Rotation angles is Horizontal 355°,Vertical 120°. watch large scale scene, various resolutions and frame rates. Supports bi-direction audio (talkback) and alarm input/output. Support require authentication for watch video and data encryption transmission for safety.Support 3g/4g SIM card.
Adopts world's leading wireless networking architecture. End user no need professional knowledge of computer/telecom etc., just need control and monitor by smart mobile etc. Operating interface is simple, obvious and humanized. User can video monitor and control the camera at anywhere and anytime.
Features
◊ Megapixel HD CMOS sensor, Support resolution:1080P(1920*1080)960P(1280*960)720P(1280*720)(640*480)/(320*240)(160*120)
◊ H.264 compression, Support Dual Stream, smooth and clear image, Suit to local/remote/cross regional Watch
◊ Support P2P(peer to peer) transmission without router setting or mapping
◊ Built-in Stereo speaker, clear and high voice
◊ Support two-way pronunciation talkbacks, built-in microphone
◊ Support Max.128G SD for store photo and video. Has record management function, user can set time of automatic video recording, also can automatic video recording via motion detecting. Beside,user can remote download video files of SD card by network
◊ Support IR-CUT double-filter, IR range up to 10meters,Image no distortion and no color cast
◊ Support UPNP-plug and play function
◊ Support 3G/4G SIM card
◊ Built-in PTZ Rotation function, Horizontal: 355°,Vertical:120°
◊ Support Android, iPhone etc mobiles watch directly(better quality video when using H.264 format)
◊ Support IE, Firefox, Safar ect. browsers
◊ Support TCP/IP,HTTP,SMTP,RTSP,FTP,DHCP,DDNS,NTP etc network protocol
◊ Support motion detecting, give sound alarm in the camera and send alarm signals by email or FTP upload pics etc., Also can send alarm information to alarm server
◊ Adopts TCP/IP network protocol and built-in Web server, User can read by IE or other browser, Data been converted via one port for user set easily
◊ Support record/alarm/remote replay etc. management
◊ Support remote watch video and record by internet
◊ Use multi-level usernames and passwords
Specification
CPU
Operation system
Windows, Linux, iOS, Android etc.
Processor
32Bit RSIC Embedded Processor
Sensor&Lens
Sensor
Megapixel CMOS
performance
Automatic BLC, White Balance and Gain Control
Min. Illumination
Color:0.8Lux/F1.4, W/B:0.01LUX/F1.0
S/N
>42dB
Lens
F1.2/3.6mm
Video
Compression
H.264 Main Profile, MJPEG/JPEG baseline
Resolution
1080P,960P,720P,VGA(640*480),QVGA(320*240)
frames per sec.
1-25fps
Image adjustment
Saturation, brightness, contrast
Night vision
IR
11pieces Φ5 LEDs, IR range10M, Automatic IR-CUT
Audio
Compression
ADPCM
Input
Built-in microphone /AGC
Output
Built-in speaker
PTZ
Rotation angles
Horizontal: 355°,Vertical:120°,Rotation speed:1-70°/s
Network
Internet port
10base-T/100base-TX RJ45
Internet protocol
TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP, PPPoE, RTSP
Wireless
Wi-Fi 802.11b/g/n and 3G/4G
Alarm
Motion detecting
Sensitive motion detecting
Alarm inform
Support Sound,E-mail, FTP upload and pop - up alarm on mobile
Physical indexes
Power supply
DC5V2A
Working Environment
-10~50 °C/ 95% RH
Accessories
One WIFI antenna ,one power adapter, one Multi - function Bracket
