92% 95% aluminum oxide tile plate mosaic abrasive resistant

Click image to view original image
Brand: win-ceramic
Making type: dry pressing
Fe2O3: ≤0.02%
Type: wear resistant tile
Price: 1538.00USD/tons
Min.Order: 0.01 tons
Supply 1000 tons
Delivery: Shipment within 20 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-04-25 16:32
Hits: 99003
Buy
Company Detail


Details

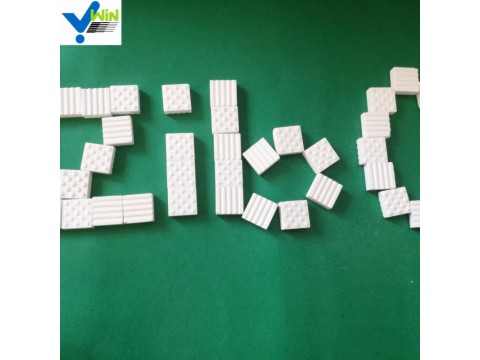

92% 95% aluminum oxide tile plate mosaic abrasive resistant


Product Description

Application

 1.Wear-resistant material for surfaces of delivery equipment such as Chutes / Hoppers, Cyclone separators,Elbows, Cyclones, Convey or pulleys.

 2.Wear-resistant material for liquid flowing pipes of petroleum, mining, steel ,power

 3.Anti-corrosion from chemical substances

 4.Thermal impact

Tiling will ensure significant savings on equipment and labour by supplying innovative solutions. Our products are used extensively wherever material wear due to abrasion, impact, friction, heat or corrosion.

Chemical composition and physical properties



Performance Index

92Series

95Series

Al2O3

>=92%

>=95%

Fe2O3

<=0.02

<=0.02

Compressive strength(Mpa)



>=2000



>=2250

Hardness mohs



>=9



>=9

Volume density(g/cm3)



>=3.60



>=3.70

Water absorption(%)



<=0.01



<=0.01

Color of product

white



white



The alumina ceramic square plate Dimension: length*length*thickness(mm)

10*10*3,10*10*4,10*10*5,10*10*6,10*10*8,10*10*10,17.5*17.5*3.2,17.5*17.5*4,17.5*17.5*5,17.5*17.5*6,17.5*17.5*8,17.5*17.5*10,17.5*17.5*15,20*20*4,20*20*5,20*20*6,20*20*8,20*20*10,20*20*15,24*24*10

Hexgonal ceramic plate:12*12*3,12*12*6,12*12*9,12*12*13





Manufacturing



Packaging & Shipping

 The alumina tiles are dispatched in strong carton with seperate paper card as buffering, palletised and shrink-wrapped for better conservation,being prepared for their immediate delivery.

Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet,20-25tons for 20'container



Company Information

 Zibo Win-Ceramic Material Co., Ltd., located in Zibo city, Shandong province, provide excellent abrasion and impact resistance for Mining and Industry applications, focusing on the development of wear-resistant alumina ceramic brick,tile, ball etc. With more than ten years experience and 200 high skilled workers ,we produce more than 2000 tons alumina ceramic and related products per month.

Our certificate

Our exhibition



Our Customer
