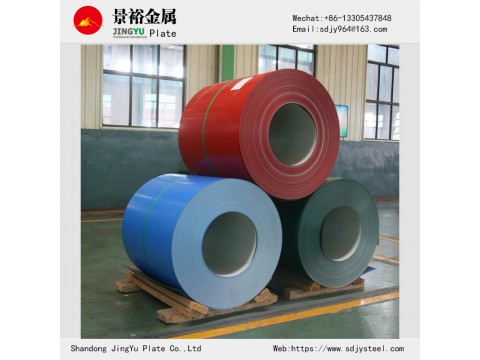

| Name | Color Coated Aluminum Coil&Sheet |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | 1050,1060,1070,1100, 1200, 1235, 1145, 3003, 3105, 3004, 3021, 5005, 5052, 5083, 5182, 5754, 8011 |
| Brand | SHANDONG JINGYU Steel |
| Thickness | 0.2-1.2mm |
| Width | 1600-1250mm |
| Length | According to customer requirements |
| Temper | O-H112, 0 H12 H14 H16 H18 H22 H23 H24 H26 |
| Tolerance | +/-0.01mm |
| Painting | Top painting 20-25um and back painting 10 um |
| Coil ID | 75, 150, 200, 300, 400, 505 |
| Color paint | PE, SMP, HDP, PVDF |

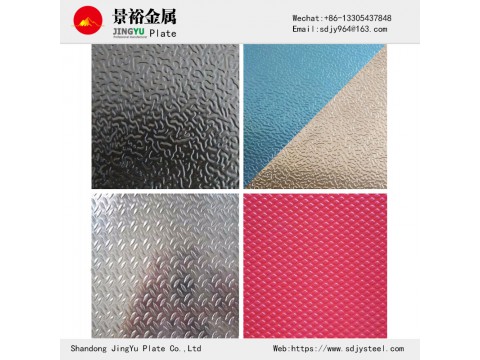

| Surface coating, color coating type |
1) Material: Pre-treatment material according to your required grade
2) Process: pre-treatment, continuous painting and baking for times 3) Paint: more than 70% of PVDF coating from PPG Corp., the USA and polyester from Sweden Becker Industrial Coating Co., Ltd. 4) Pretreatment: the raw aluminum has to be washed by acid, and chromate. After it is dried out, it will be covered by oxide film to heighten the adhesion. 5) Colors: Can do as your requirement based on RAL color no. 6) Polyester coating single coating, one layer, 18μm; double coating, two layers, 25~27μm. PVDF coating: two layers of PVDF coating, at least 25μm, and if required, it will be covered by another layer of varnish, 35μm in total.
|
| Coil Weight | 3-6 ton or as request |
| Package | Standard seaworthy exporting carton, Wooden pallets, waterproof paper and plastic coverage or as per customer’s requirements. |
| Certification | ISO 9001-2008,SGS,CE,BV |
| MOQ | 2 tons |
| Delivery | 10-25days |
| Monthly Output | 3000tons |
| Application |
· 1) Construction material further processing
· 2) Solar cell frame, solar battery frame · 3) Glass curtain wall frame · 4) Interior decoration · 5) Elevator decoration · 6) Signs, nameplate, bags making. · 7) Automobile parts material · 8) Office and Household appliances: HVAC equipments · 9) The consumer electronics: mobile phones, digital cameras, MP3 .etc. |
| Payment | T/T, LC, Kun Lun Bank, Western Union, PayPal etc |
| Remarks | Insurance is all risks and accept the third party test |
