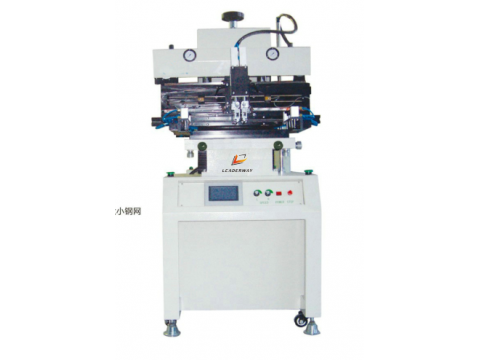

semi-automatic printer
High Rigidity structure and linear rails ensure the stabilities and precision of printing.
■ PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
■ This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristic of glue and solder paste.
■ Flexible arming base with the arms can be adjusted toward right or left to match different size of PCB.
■ The printing knife can be rotated 45℃ upward then fixed to convenient for the clean & replace of knife and stencils.
■ Calibration method is to use the movement of stencil to match with X, Y, Z of printing base
semi-automatic printer
Description
Adapted to the printing of solder
paste and glue for all kinds of
thick or thin PCB (single or double)
PCB Thickness Range
0.2-3.0mm
Slim Adjusting of platform
±0.05 mm
Respectabilities Precision
±0.02mm
Printing Method
Stencil movement
Power Source
100-230VAC(specify)，1ph
Power Consumption
120VA max
Air Pressure
4-6 bar
Air Consumption
10 Ltr/min max
High Rigidity structure and linear rails ensure the stabilities and precision of printing.
■ PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
■ This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristic of glue and solder paste.
■ Flexible arming base with the arms can be adjusted toward right or left to match different size of PCB.
■ The printing knife can be rotated 45℃ upward then fixed to convenient for the clean & replace of knife and stencils.
■ Calibration method is to use the movement of stencil to match with X, Y, Z of printing base
