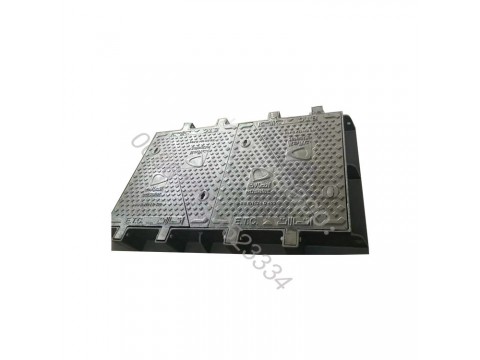

High Quality Rectangular ductile iron Manhole Cover And Frame

Click image to view original image
Brand: YDT002
service: OEM&ODM
Standard: EN124
Material: Ductile iron
Price: 700.00USD/ton
Min.Order: 10 ton
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2020-05-15 [Expired]
Updated on: 2019-05-20 09:33
Hits: 36440
Company Detail


Details

Grey cast iron manhole cover:

Manhole covers

1.Product information:

Manhole Covers are manufactured for construction and public use. Manhole Covers shall be smooth

and free from sand holes, blow holes, distortion or any other defects

2.Material
    Ductile Iron GGG500-7 & 400-12 and Grey Iron GG20

3.Designs .

a. EN124 A15, B125, C250, D400, E600 and F900
    b. A60005 for casting design
    c.Major standards designs available
    d. As per customers' drawings or samples
    4.Process
    a. Molding boards
    b. Green sand with hand molding
    5.Coating
    a. Cold applied black bitumen
    b. Without coating
    c. Coating as per customers' requirement
    d. Different accessories are available


Order No. Inner dia Grating Outer dia Height Weight(kg) Pressure(KN)
F0536-1 252X252 326X326 360x360 36 13.5 C250
F0536-2 350x350 400x400 470x470 40 20 C250
F0536-3 450x450 500x500 580x580 50 32 C250
F0536-4 550x550 600x600 680x680 50 39 C250
F0536-5 350x350 400x400 500x500 100 36.2 D400
F0536-6 450x450 500x500 600x600 100 49 D400
F0536-7 560x560 600x600 700x700 100 62 D400




Company Information

We're a leading manufacturer specailized in making ductile cast iron manhole cover, gully grates,

which have been sold well all around the word.In Africa,our products take the most majority,and they

have a good and stable quality.


FAQ

1. Are you a trader or manufacturer ?

We are professional manufacturer for more than 30 years .Our company products including ductile

cast iron rain grate,nodular cast iron manhole covers,ductile iron anti-theft covers,urban greening tree

pit cover plate etc.


2. What is your products advantage ?


A.All kinds of size as customer's requirements;

B.Small quantity trial order is welcome

C.Customized design is available and free, Such as Color, Logo, Panel, Load and Dimension etc.

D.Quality control and Promtly delivery

E.Good after sales service


3.What is your payment ?


T/T,L/C,D/P Western union or as customer's requirements.


4.How about the shippment ?


A.small quantity you can choose by air

B.less than one container you can choose LCL shippment by sea

C.one container or more than one container you can choose FCL shippment by sea.
