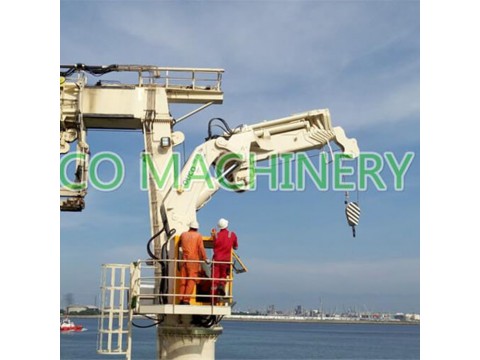

OUCO Marine/Offshore Folding Boom Crane Marine Crane Pedestal crane Save space and still handle the most challenging jobs with the Knuckleboom crane. Flexible enough to maneuver into hard-to-reach locations, the Knuckleboom crane is perfect for cargo applications and locations with difficult access from overhead. OUCO Marine group can design the foldable cranes based on API-2C regulations and rules.These cranes are suitable when the deck space is limited.
Their design combines maximum performances with flexible working operations. These cranes are handy and allow comfortable working operations in all operative conditions.
They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request. The small size ship folding boom crane is more durable and has less moving parts. The hydraulic davit crane is the perfect solution for standard, ordinary lifting & handling needs. A fixed boom marine crane works faster and is mostly used to transport groceries and smaller, more ordinary lifting & handling purposes.
Advantages of this knuckle and telescopic boom ccstal crane
Running smoothly.
Rates of speed can be changed.
360 degrees rotary.
Both electro hydraulic and manual to control.
Operate conveniently.
Safety and reliability.
Main Features And Advantages
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly. This offshore crane especially wildly been used in the mild-east area for the OSV (oil service vessel); which is especially designed according to the harsh working environment there. OUCO Marine Telescopic cranes can be designed and manufactured by clients' requirements in our own factory. The perfect solution for applications that require reach and compact storage, the Telescopic Boom crane is available with two to four box boom sections.
TB series crane: End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales services support.
Technical Parameters
| SWL |
2.5T@22M |
| Working Radius | 3~32m |
| Hoisting Speed | 0~12m/min |
| Hoisting Height | 30m |
| Slewing Speed | ~1.0r/min |
| Slewing Angle | 360° |
| Luffing Time | ~120s |
| Extension Time | ~150s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 75KW |
| Motor Speed | 1760r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
Customer Bulid
We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your required specifications.
For example:
This product is called 3T30M crane, because the feature is that this crane has a Lifting Point that can lift Maximum 3T at 40 meters ( the current boom length ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture that you want.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year ( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.
General Arrangement Drawing
Detailed Images
OUR SERVICE
Pre-Sales Service After-Sales Service
1.Inquiry and consulting support. 1. Engineers available to service overseas.
2. View our Factory. 2.Training how to instal and use crane.
3. Check the load test before shipment. 3.12 months free maintenance.
OUCO FACTORY
Jiangsu OUCO Heavy Industry And Technology Co.,Ltd
We are an integrated company of industry and trade,our factory specialize in this field for many years.Our factory can design andmanufacture any type marine/offshore cranes based on your technical requirements. To deliver the best possible products for the bestpossible price and quality. We are competitive as we have low labor cost, and deliver quality because we use Europeancomponentsin our cranes.Not only to deliver a good product, by experience we know that a crane is a one time investment for a client and howimportant it is to do repairs at location in a short time as most clients have to deal with a high day-rate from their vessels; "Down-time" is expensive. Do not be hesitate, please feel free to "SEND" inquiry to us.
CUSTOMER VISITS
FAQ
Q: What's working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra functio based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
