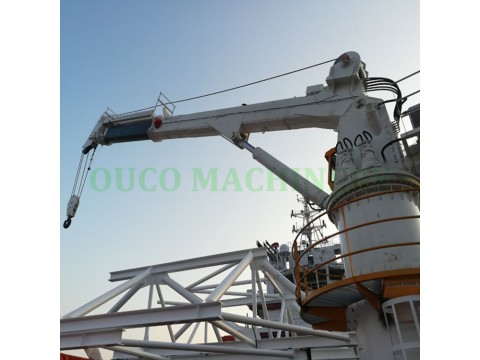

Offshore Crane with Hydraulic System for Marine Ship Deck Lifting

Click image to view original image
Brand: OUCO
Swl: 3t@30m
Working Radius: 3-30m
Hoisting Height: 50m
Price: 120000.00USD/set
Min.Order: 1 set
Supply 30 set
Delivery: Shipment within 60 days since the date of payment
Address: China
Valid until: 2020-05-20 [Expired]
Updated on: 2019-05-22 14:33
Hits: 16036
Company Detail


Details

3T30M&30T6M Telescopic Boom Crane

The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.
The 3T30M Telescopic boom crane is the first marine crane OUCO has shipped to South America. This crane is available from 3-30 meters of crane boom, which have long range of usage.

Main Features And Advantages

1.Easy maintenance at all situation.
2.Self contained unit with integrated hydraulic power pack.
3.Fail-safe brakes on all movements.
4.Fully enclosed and equipped operator cabin with air condition.
5.The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
6.base on many year's design and fabrication experience of crane and other similar equipment.
7.Suitable for all kinds of ships and low power consumption and high efficiency.

8.Welded and high strength box boom for easy maintenance.
9.With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.

Technical Parameters

SWL 3T30M
Max. Working Radius 30 m
Min. Working Radius 3 m
Hoisting Speed 0-15 m/min
Hoisting Height 50 m
Slewing Speed ~0.6 r/min
Slewing Angle 360°
Luffing Time ~90 s
Extension Time ~ 90 s
Working Condition Trim ≤ 2°
Heel ≤ 5°
Protect Class IP44
Woeking Type S1
Power 90 kw
Self Weight 22 T


General Arrangement And Technical Parameters



Customer Bulid

We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your required specifications.

For example:
This product is called 3T30M crane, because the feature is that this crane has a Lifting Point that can lift Maximum 3T at
40 meters ( the current boom length ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture that you want.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )


Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm


Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

Detailed Images


OUR SERVICE

Pre-Sales Service                                                        After-Sales Service

1.Inquiry and consulting support.                                 1. Engineers available to service machinery overseas.

2. View our Factory.                                                      2.Training how to instal and use crane.

3. Check the load test before shipment.                        3.12 months free maintenance.


OUCO FACTORY


Jiangsu OUCO Heavy Industry And Technology Co.,Ltd

We are an integrated company of industry and trade,our factory specialize in this field for many years.Our factory can design andmanufacture any type marine/offshore cranes based on your technical requirements. To deliver the best possible products for the bestpossible price and quality. We are competitive as we have low labor cost, and deliver quality because we use Europeancomponentsin our cranes.Not only to deliver a good product, by experience we know that a crane is a one time investment for a client and howimportant it is to do repairs at location in a short time as most clients have to deal with a high day-rate from their vessels; "Down-time" is expensive. Do not be hesitate, please feel free to "SEND" inquiry to us.

CUSTOMER VISITS

FAQ

Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.

For more information, please feel free to contact me as below.
