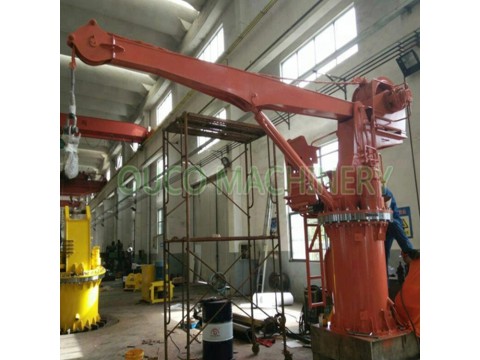

Hydraulic Marine Deck Crane 3T 4M Stiff Boom Pedestal Slewing Design

Click image to view original image
Brand: OUCO
SWL: 3T@4M
Working Radius: 1~4m
Hoisting Height: 25m
Price: 8000.00USD/set
Min.Order: 1 set
Supply 100 set
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: 2020-05-21 [Expired]
Updated on: 2019-05-22 14:38
Hits: 16203
Company Detail


Details

Product description

Stiff boom cranes are based on a pedestal slewing design with hydraulic cylinder luffing. The cranes are available in the range from 1t to 200t lifting moment and are supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes are typically used in dock, on fixed installations and in harbour conditions.


Main Features and advantages

The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
base on many year's design and fabrication experience of crane and other similar equipment.
Suitable for all kinds of ships and low power consumption and high efficiency.
Welded and high strength box boom for easy maintenance.
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
.


Technical Specification


SWL 3t@4m
Working Radius 1~4m
Hoisting Speed 0~10m/min
Hoisting Height 25m
Slewing Speed ~0.8r/min
Slewing Angle 360°
Luffing Time ~45s
Tirm ≤2°
Heel ≤5°
Motor Type Y160K-4-H
Motor Power 15KW
Motor Speed 1460r/min
Power source AC415V, 50Hz,3P
Protect Class IP56
Insulate Class F
Working Type S1



General Arrangement



Customer Bulid

OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.


Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )


Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm


Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.


Detailed Images


Packing&Shipping



FAQ:


Q: What’s the capacity of your request crane?
A: From 0.5t to 100t.


Q: What’s working radius of your request crane?
A: From 1m to 100m.


Q: Which type of the crane should I choose?
A: Folding boom, knuckle boom, telescopic boom, stiff boom, etc. Some advices can be offered accordingly.


Q: Can this crane be explosion proof?
A: Sure, any extra function based on your requirement.


Q: Does your crane have safety devices?
A: Of course, all cut off limits and alarms for safety reasons.


Q: How can I install the crane to my vessel?
A: Our service engineers will go to the vessel site for guiding or ship the crane in whole piece.


Anything else? I will be pleased to answer all your questions and doubts.



For more details, please feel free to contact me as below:
