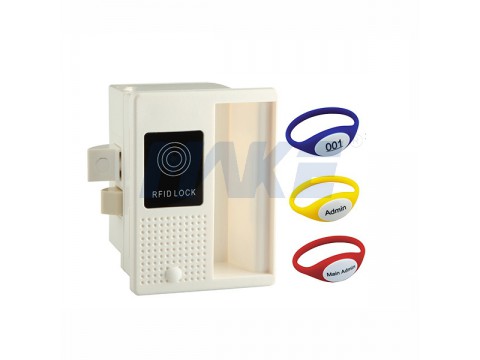

RFID lock supplier: RFID digital lock for Lockers, ABS plastic material, three level system for user administration, no external devices.
- Support almost Mifare one solutions in the area of 13.65MHz.
- Compatible with already existing Mifare one system.
- Three level system for user administration.
- Up to 100 users per lock.
- Quick and easy operation.
- No external programming devices needed.
- LED in 2 colors for lock status(green, red).
- Application for metal, wooden and plastic doors.
Technical Data
Dimensions
79.8X59.8X55.6mm
Material
ABS
Input Voltage
DC4.5V
Battery
3 X AAA alkaline batteries
Service life 10,000 locking cycles
Static Power
≤100uA
Dynamic Power
≤170mA
Max Reading Range
7±2mm
Undervoltage alarm
3.5V
