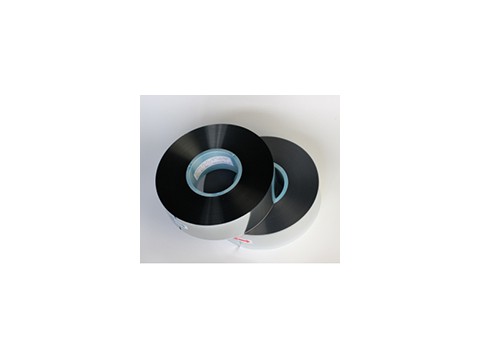

Zn/Al Metallized Bopp Capacitor Film

1.Basic Information

MPP Film Type	metallized Polypropylene Film For Capacitors
Width	4.5-130mm
Thickness	1.6~12um
Margin Value	0.5mm 1.0mm 1.5mm 2.0mm 2.5mm
Specification	metallized Film For Capacitors
Types Of metallized Layer	Al metallized Film、Zn/Al metallized Film
Density	0.905+/-0.005g/cm3
Processing Type	Vacuum Coating Capacitor Film
Trade Mark	CSF
MOQ	1 Kilogram
Delivery Detail	7~15 Days After Payment
Packaging Detail	To be shipped in vacuum-sealed metallized plastic bags
Transport Package	Vacuum Package For Standard Export Carton
Port	Shanghai or Ningbo
Origin	Tongling City,Anhui Province,China(Mainland)

2.MPP Film Structure Chart

3.Products Types

(1)Single margin Opp film with one side Zn-Al metallized

(2)Single margin Opp film with slope resistance one side Zn-Al metallized

(3)Single margin Opp film with high resistance one side Zn-Al metallized

(4)Segmented metallized film

(5)Middle margin PET film with double sided Al metallized

(6)Single margin OPP film with one side Al metallized

(7)Double margin OPP film with one side Al metallized

(8)Multi-margin OPP film with one side Zn-Al metallized

(9)We can design and produce all kinds of metallized film for capacitors according to customer's requirement

4.Normal Specification

Item	Thickness(um)	Width(mm)	Margin Value(mm)	ID(mm)	OD(mm)
metallized Polypropylene Film	2/3/4/5/6/7/8/9/10/12	14/17.5/21/26/30/35/37.5/40/45/50/55/60/65/70/75/80/85/90/95/100/115/120/125/130	1.0/1.5/2.0/2.5/3.0	75	180/240/270/320

Note:Other specifications and sizes of metallized bopp capacitor film which are not in the above table can be negotiable.

5.Parameters Of MPP Film

6.Parameters Of MPET Film

7.Packing

(1) Film rolls are packed and heat-sealed in vacuum plastic bags with desiccants inside.

(2)The bags are marked with type labels.

(3)The bags are packed in carton cases.

(4)The cartons are wrapped in wooden cases or reinforced carton.

8.Storage

(1)metallized film should be stored in its original package with temperature 5~35ºC and humidity less than 85%RH before using.

(2)metallized layer is easily oxidized when exposure to moisture.Therefore,the film should be used as soon as possible when opened.

(3)The recommended temperature is 15-25ºC with humidty less than 60%RH after opening.

(4)With original sealed package,and stored as mentioned above,the storage time can be as following:

Al metallized film:12 months from the delivery date.Al/Zn Alloy metallized film :As zinc is quite unstable,the storage period(from delivery date) depends on the resistance of the film:

≦10Ω：6 months

10-30Ω:3 months

>30Ω:1 month

9.Production Equipments

10.Quality Assurance Capability

11.Strong R&D Strength

12.Honors Our Team Has Received
