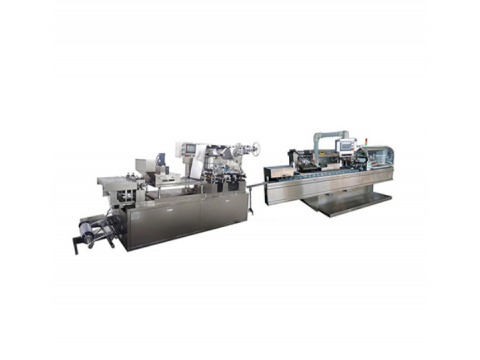

DPB-250 Blister Packing Part:
Applications: It is a latest high-precision medicine packing machine in current pharmacy industry. It is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc. in electron or hardware industry as all kind of shapes of ALU-ALU,ALU-plastic, paper-plastic combined sealing packing.
1.The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good exchangeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.
Technical Parameters:
| Model | DPB-250 |
| Cutting Frequency(times/min) | 6-35(I) 20-60(II) |
| Capacity (strip/h) | 8400(I) 12000(II) |
| Max shaping areas and depth(mm) | 240*160*26 |
| Stroke(mm) | 20-120(can be manufactured as user`s requirements) |
| Standard Sheet(mm) | 80*57(can be manufactured as user`s requirements) |
| Air Pressure(kw) | 0.4-0.6 |
| Total power | 380V/220V 50Hz 6kw |
| Pressure(kw) | 1.5 |
| PVC hard pieces(mm) | 0.15-0.5*250 |
| PTP Aluminum Foil(mm) | 0.02-0.035*250 |
| Dialysis Paper(mm) | 50-100g*250 |
| Mould Cooling | tap water or back water |
| Overall Dimensions(mm) | 2710*720*1600 |
| weight | 1600 |
ZH120 Carton Machine
Application: This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light. The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily. The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.
Features:
1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.
Technical Parameters:
| Model | ZH120 |
| Production capacity | 50-100 b/min |
| Packing material | the max. size 200×120×70mmthe min. size 50×25×12mm |
| Box quality | 250-300 g/m2According to its dimensions to ///confirm/i/i/i |
| Operation manual | max .size 260×180mm min. size 110×100mm |
| paper weight | 55-65g |
| Volume of consumption | 20 M3/h(pressure 0.5-0.7MPa) |
| Total power | 1.5KW |
| Packing material | The max. size 200×120×70mm |
| Electric power | 380V 50HZ |
| Overall dimension | 3700×1350×1700mm |
| weight | 1800 |
