Inline Pump
MDP15

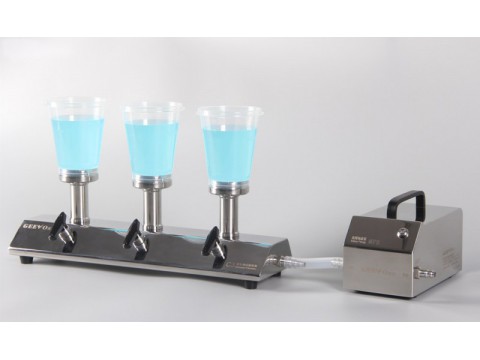

MDP15 Inline Pump is ideal product for supporting microbial filtration test at home and abroad.
Microbial filtration ystem is used to do microbial test or other liquid demanded filtration, and MDP15 is main compose of it.
It is special for laboratory, can continue work with oil-free, low noise, high work efficiant, long lifetime and reliable performance.
Feature
●Water and air diaphragm vacuum pump
●Smart design
●No need buffer bottle, much safe
●Tube connect easily
●DC power supply, safer use
●Stainless steel surface, easy to clean
●Light button switch, operation intuitively
●Multi - stage ring pagoda-type drainage pipe interposition, protect the drainage from damage
Technical Parameter
Air exhaust Speed: 1500ml /min
Max. vacuum: 725mmHg
Voltage of power adapter: 100-240V，50/60Hz
Input voltage of main engine: 24V DC
Power: 24W
Net weight: 1.7KG
Noise: ＜50dB
LxWxH: 170mm x 93mm x 90mm
Application
Microbial filtration
Drug analysis
Fine chemical industry
Bio-pharmaceutical
Food inspection
