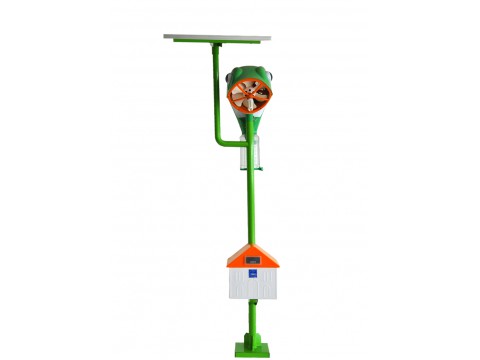

Solar insect trap 3BCT-35 series
Product features:
Using integration of multiple control methods by special light source, light source plus attractant or plus swatches to trap pests, with multiple optional functions available, like broadcasting.
Application areas: farmland of various crops, agriculture
3BCT-35
3BCT-35-1
Sizes:
1050*800*2700mm
Suction case
ABS，suction port diameter：300mm
Fan blades
ABS，diameter: 285mm
motor
Brushless DC
motor, DV12V, rated power: 23W,
protection grade:
IP44
attracting
light
Wavelength:
320-680nm, DV12V, 12-15W
methods
Light, sex
attractant（multiple，optional）
Solar panel
Monocrystalline
silicon，voltage: DV18V, power：70W/100W
battery
Colloid,
maintenance free,40AH
Colloid,
maintenance free,50AH
control
Light
control, rain control, time control, automatic charge and discharge
protection, working condition: -35-80 ° C, protection grade: IP67
Control box
ABS，optional functions available: broadcasting, out speaker and USB
port.
pole
Galvanized
steel pipe surface sprayed，diameter≥60mm, thickness≥2mm
Collecting
box
Transparent
PVC，sizes:160*160*300mm
Automatic
Pouring off
Function(optional)
Voltage:
DC12V, torsion: 6NM,
rotation
degree: 90°
Trapping Coverage
15-20
acres/unit
