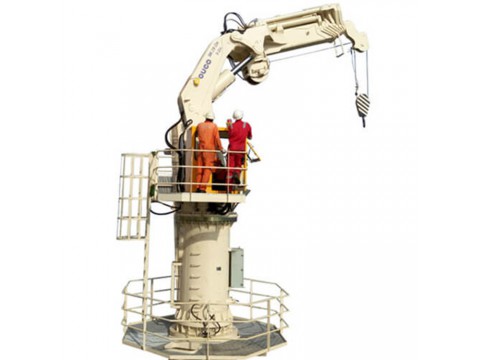

Marine Crane with Space Saving Folding Boom Crane

Click image to view original image
Brand: OUCO
Swl: 2.5t@22m
Working Radius: 3~32m
Hoisting Height: 30m
Price: 110000.00USD/Set
Min.Order: 1 Set
Supply 20 Set
Delivery: Shipment within 60 days since the date of payment
Address: China
Valid until: 2020-02-16 [Expired]
Updated on: 2019-08-18 23:21
Hits: 29035
Company Detail


Details

Product description

OUCO Marine/Offshore Folding Boom Crane Marine Crane Pedestal crane Save space and still handle the most challenging jobs with the Knuckleboom crane. Flexible enough to maneuver into hard-to-reach locations, the Knuckleboom crane is perfect for cargo applications and locations with difficult access from overhead. OUCO Marine group can design the foldable cranes based on API-2C regulations and rules.These cranes are suitable when the deck space is limited.
Their design combines maximum performances with flexible working operations. These cranes are handy and allow comfortable working operations in all operative conditions.
They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request. The small size ship folding boom crane is more durable and has less moving parts. The hydraulic davit crane is the perfect solution for standard, ordinary lifting & handling needs. A fixed boom marine crane works faster and is mostly used to transport groceries and smaller, more ordinary lifting & handling purposes.

Advantages of this knuckle and telescopic boom ccstal crane

Running smoothly.
Rates of speed can be changed.
360 degrees rotary.
Both electro hydraulic and manual to control.
Operate conveniently.
Safety and reliability.

Main Features And Advantages

The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly. This offshore crane especially wildly been used in the mild-east area for the OSV (oil service vessel); which is especially designed according to the harsh working environment there. OUCO Marine Telescopic cranes can be designed and manufactured by clients' requirements in our own factory. The perfect solution for applications that require reach and compact storage, the Telescopic Boom crane is available with two to four box boom sections.

TB series crane: End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales services support.

Technical Parameters

SWL

2.5T@22M

Working Radius 3~32m
Hoisting Speed 0~12m/min
Hoisting Height 30m
Slewing Speed ~1.0r/min
Slewing Angle 360°
Luffing Time ~120s
Extension Time ~150s
Tirm ≤2°
Heel ≤5°
Motor Type Y160K-4-H
Motor Power 75KW
Motor Speed 1760r/min
Power source AC440V, 60Hz, 3P
Protect Class IP56
Insulate Class F
Working Type S1


Customer Bulid

We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your required specifications.

For example:
This product is called 3T30M crane, because the feature is that this crane has a Lifting Point that can lift Maximum 3T at 40 meters ( the current boom length ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture that you want.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year ( If needed, warranty time is available to be extended according to customers' requirements )
