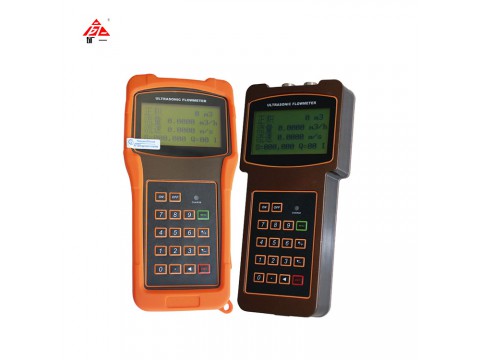

Hand-held Ultrasonic Flow Meter

Model: CSL1

Description: CSL1 Hand-held Ultrasonic Flow Meter

Introduction:

1. Applicable for measurement of single and uniform liquid’s flow and heat, which the liquid can be conducted by ultrasonic.

2. Non-touch measurement type and large measuring range. It has no influence from system pressure and bad environment because of no unfixed machinery part.

3. Be applied successfully in water, pure water, sea water, waste water, chemical liquid, river water, fuel oil measurement.

4. Applicable for refrigeration, heating, heat exchanger, refrigerator, boiler fields.

Technology parameters:

1. Measuring precision: flow ± 1%, quantity of heat ± 2%.

2. Pipe caliber: 15mm~6000mm

3. Flow velocity: 0~32m/s; linearity: 0.5%; repeatability: 0.2%.

4. Pipe materials: steel, stainless steel, cast iron, PVC, copper, aluminum.

5. Measuring object: water, sea water, polluted water, acid and alkali liquid, alcohol, beer, oil (The liquid is single and uniform and can be conducted by ultrasonic).

6. Display: 4×8(Chinese) or 4×16(English) dot-matrix backlight LCD display; Size:71×39mm

7. Language: can choose 3 kinds of Languages among Chinese, English, Italian, French, Turkish and Spanish.

8. Button: 16+2 buttons.

9. Communication interface: RS232

10. Communication agreements: Modbus, M-bus, Fuji extended agreement.

11. Signal input/output: OCT output, temperature measurement.

12. Data record: built-in 32Mbit storage and SD card. Capacity up to 2G(optional).

13. Power adapter: AC90~260V input; DC6V output; Power: 6W.

14. Battery: Ni-MH battery, 1.2v, 3 batteries; Capacity: 2000 mAH; Charge time: 8 hours; Working time: 12 hours.

15. External materials: ABS

16. Dimensions: 200×93×33mm

17. Weight: 390g

Features:

1. High precision: precision ± 1%, linearity 0.5%.

2. Small volume (200×93×33mm), light weight (0.4kg).

3. Putting magnetic sensor to external wall of pipe can achieve non-touch measurement.

4. Large range: Can measure DN15~6000 pipe flow by configuring different sensors.

5. Power: built-in high capacity Ni-MH rechargeable battery. Continuous working time: 12 hours.

6. Large LCD screen: can display accumulated flow, instant flow, flow velocity and working status at the same time.

7. Data recorder: built-in 32Mbit recorder; external SD card (512MB~2G).
