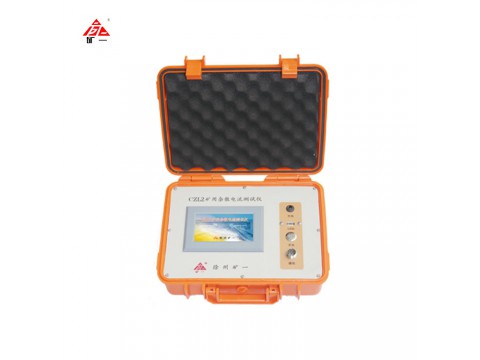

Mining Stray Current Tester

Model: CZL2

Description: CZL2 Mining Stray Current Tester

MA: MFA140218

KA: KFA140055

ExdibI: 320140834

Patent No. ZL 2012 2 0543945.4

Introduction:

1. New professional digital stray current tester, portable.

2. Test alternating/direct current. It dynamically displays current curves in real-time.

3. The prevention of explosion caused by stray current. Prevent explosion, electrochemical corrosion and other accidents caused by stray current.

Technology parameters:

DC: 0.00~50.00mA, accuracy: ± 2.5%FS

0.00~500.00mA, accuracy: ± 2.5%FS

0.00~5.00A, accuracy: ± 2.5%FS

AC: 0.00~50.00mA, accuracy: ± 4%FS

0.00~500.00mA, accuracy: ± 4%FS

0.00~5.00A, accuracy: ± 4%FS

Consist of:

CZL2-Z mining intrinsic safety stray current tester host (MAB140816)

YJA5 mining explosion-proof and intrinsic safety current collector (MAB140815)
