Road Grader

Click image to view original image

Brand:	Justsun
Price:	Negotiable
Min.Order:	1 Sets
Supply
Delivery:	Shipment within 3 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2019-09-09 09:32
Hits:	111652

Company Detail

Xiamen Justsun Intelligent Equipment Co., Ltd
[Credit File]
Already 0.00 USDSecurity deposit
Contacts李杰赢(Mr.) Manager
Member [Offline] [Add to my friend] [Send mail]
Phone
AreaChina
AddressUnit 1703-2, No.165 East Tapu Road, Siming District, Xiamen, Fujian, China

Details

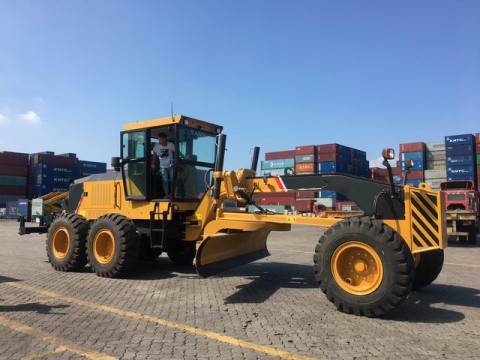

Road Grader Supplier Justsun Provides Road Grader, Road Grading Machine, Curb Weight 15800 KG, Dimension Length 9080mm x Width 2740mm x Height 3310mm.

Engine Type: Weichai-WP6G200E330.
Emission Standard: EuroⅢ.
Rated Power (Kw)/Speed (rpm): 147/2200 kW/rpm
Dimension: 9080x2740x3310mm.
Curb Weight: 15800kg.
Tyre size/Ply Rating: 17.5-25 12PR.
Minimum Turning Radius: 7.3m.
Maximum Working Pressure of the Hydraulic System: 18MPa.
Gearbox shifting system pressure: 1.3 - 17.
Maximum Steering Angle of Front Wheel: ±45°.
Maximum Tilting Angle of Front Wheel: ±17°.
Maximum Oscillating Angle of Front Axle: ±16°.
Maximum Oscillating Angle of Balance Tank: ±15°.
Rear Axle Clearance: 410mm.
Capacity of Hydraulic Tank: 140L.
Capacity of Fuel Tank: 350L.
Blade (Length x Height): 3965x620mm.
Gear: 6 forward gears, 3 reverse gears.
