Product Introduction

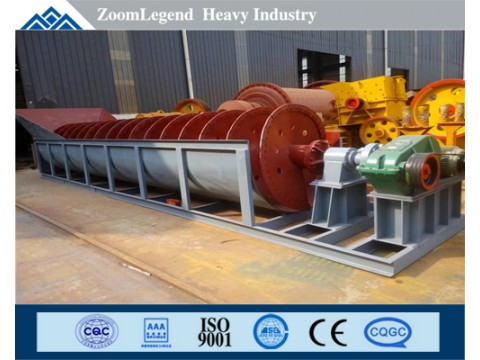

As one of the sand washers, spiral sand washing machine is mainly to stir the sand and stones by the spiral appliance which mixes the clay and the water in the materials and discharges them from the discharging outlet. The sand and stones are selected by the spiral device and are discharged from the top discharging outlet that achieves washing and screening of materials.
Working Principle
Spiral sand washing machine has several strong points: reasonable structure, convenient maintenance, large capacity, low power consumption and high ratio of cleaning. The novel sealing structure, all-closed oil-bath transmission device, and adjustable overflow weir plate guarantee high efficiency, long duration, good effects of washing and dehydration, orderly granularity of products, etc.
Performance Characteristics
1. Simple Structure, stable operation.
2. Separation between the water and materials avoids the breakdown of the machine caused by rust pollution.
3. It's applicable in all kinds of working conditions.
4. Less loss of materials and high efficiency of screening and washing can completely satisfy the requirements of high grade materials.
5. Long duration without any abrasive components.
6. It rarely needs repairing which greatly reduces the cost.
Applicable Scope
1. It's a highly-efficient and energy-saving machine which saves energy about 50% than that of traditional sand makers, especially applicable in making abrasive and refractory materials and fine and secondary crushing of various hard and crisp materials like cement, quartz, steel sand, slag powder, copper, iron, gold, aggregates of concrete and bitumen, etc.
2. It's also applied for materials of medium, fine and coarse granularity in the selection, classification and purification in highway, hydropower, and construction industries.
Technical Parameters
Model |
Spiral Diameter (mm) |
Output (t/h) |
Motor Power (kw) |
Weight (kg) |
FG-60 Spiral Sand Washer |
600 |
20 |
3 |
2550 |
FG-75 Spiral Sand Washer |
750 |
50 |
5.5 |
3820 |
FG-100 Spiral Sand Washer |
1000 |
75 |
7.5 |
4870 |
FG-120 Spiral Sand Washer |
1200 |
95 |
11 |
6900 |
FG-150 Spiral Sand Washer |
1500 |
130 |
18.5 |
8800 |
