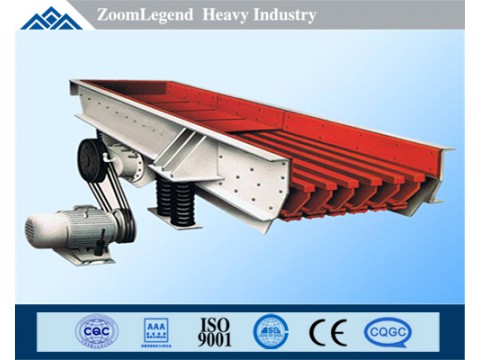

Electromagnetic Vibrating Feeder

Click image to view original image
Brand: zoomlegend heavy industry
Double Amplitude: 1.75
color: white, blue
power: 60W
Price: 2000.00USD/set
Min.Order: 1 set
Supply 120 set
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: 2021-01-17 [Expired]
Updated on: 2020-03-30 20:54
Hits: 9345
Company Detail


Details

Product Introduction

GZ electromagnetic vibrating feeder is mainly applied to feed lump, particle and powdery materials, from the storage bin or hopper to the receiving device evenly, continuously or quantitatively. It's featured by small size, lightness, easy installation, non-rotary parts, non-lubricating, convenient maintenance, high efficiency, low electricity consumption, etc, which is widely applied for mining, metallurgical, coal, electric, food, chemical, and light industries.


Working Principle

The current of vibration exciter electromagnetic coil is half wave rectifier. When the coil is connected with the current running through the positive half cycle, there is an attraction of impulsive electromagnetism between the armature and the iron core and the tank will move backward. The main spring of the vibration exciter has stored a certain potential energy. When there is no current running through the negative half cycle coil, the electromagnetism disappears and the main spring discharges the energy which makes the armature and the iron core move against the tank. So the electromagnetic vibrating feeder reciprocates 3,000 times a minute at the frequency of alternating current. The bottom of the tank has a certain angle with the vibrating exciter action line, so materials in the tank continuously move forward along the trail of parabola. To adjust the rectifying voltage is to control the feeding volume. The feeder adopts the silicone controlled rectifying which can alter the conduction angle and control the output voltage. Under different circumstances, the conduction angle of silicone controlled rectifier can be controlled by different signals to achieve automatic and quantitative feeding.


Components

GZ electromagnetic vibrating feeder is mainly consisted of electromagnetic vibrator, coal feeding inlet, coal feeding tank, coal drop pipe, shock absorber. GZ electromagnetic vibrating feeder driven by vibrating motor makes materials reciprocate linearly and periodically toward the tank to achieve even and quantitative feeding.


Performance Characteristics

1. It can adjust feeding volume continuously and achieve production automatization applied in automatic control of production.

2. Non-rotary spare parts, non-lubricating, simple structure, convenient maintenance.

3. Materials are slightly thrown so there is less abrasion of tank.

4. The tank is made of steel sheets applied to deliver high temperature, badly abraded and corrosive materials.

5. The flow can be altered, opened or closed instantly which guarantees higher accuracy of feeding volume.

6. High efficiency, low electricity consumption.


Technical Parameters

Type

Project

Productivity ≤T/h

Feeding Granularity ≤mm

Double Amplitude mm

Discharging Voltage V

Current A

Power KW

Auxiliary Control and Model

Weight kg

Outer Dimension (mm)

Model

Parameter

Slope

-10°

Working Current

Displaying Current

L1

L2

L3

L4

H1

H2

B1

B2

Basic Type

GZ0

5

7

50

1.75

220

1.34

1

0.06

XK35

75

910

600

200

550

100

360

200

230

GZ1

10

14

50

3.0

2.3

0.15

146

1175

800

310

660

120

450

300

388

GZ2

25

35

75

4.58

3.8

0.25

217

1325

900

311

790

150

520

400

496

GZ3

35

50

85

6.8

5.5

0.35

300

1460

1000

350

870

175

580

450

550

GZ4

50

70

100

8.4

7

0.45

412

1615

1100

413

960

200

645

500

620

GZ5

100

140

150

12.7

10.6

0.65

656

1815

1200

465

1050

250

765

700

850

GZ6

150

210

180

16.4

13.3

1.5

1212

2570

1300

240

1744

250

1530

870

930

GZ7

250

350

200

24.6

20

3

1685

3320

1400

260

1988

250

1600

1070

1120
