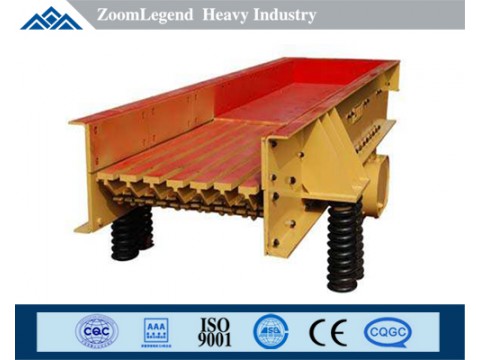

Linear Vibratory Feeder

Click image to view original image
Brand: zoomlegend heavy industry
Maximum Feeding Granularity: 350mm
Capacity: 100t/h
Motor Power: 1.1*2kW
Price: 3800.00USD/set
Min.Order: 1 set
Supply 150 set
Delivery: Shipment within 25 days since the date of payment
Address: China
Valid until: 2021-01-17 [Expired]
Updated on: 2020-03-30 20:53
Hits: 7416
Company Detail


Details

Introduction

In the production process, the vibrator feeder is used to feed the bulk and granular materials from the storage bin to the receiving device uniformly, regularly and continuously.In the sand and stone production line, it can feed the material continuously and evenly for the crushing machine, and conduct coarse screening for the material, which is widely used in the crushing and screening equipment of metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasive and other industries.

Advantages

1.Strong adaptability

It is adaptable to all kinds of rock, especially viscous rock, and can work in dusty or water-bearing environment.

2.Operational stability

Using double eccentric shaft as vibration source, stable amplitude, good continuity, adjustable vibration force, can ensure the flow of materials.

3.High cost performance

Small size, light weight, simple and compact, no rotating parts, less wearing parts, small investment, less power consumption, high cost performance.

Working principle

vibrator feeder2Vibration feeder is composed of feed tank, vibration exciter, spring support and transmission device.

The motor drives the drive shaft through the triangle belt, and then the drive shaft is rotated by the passive shaft of the gear meshing on the drive shaft. The main and passive shafts rotate in reverse simultaneously, making the tank vibrate and the material flow continuously, so as to achieve the purpose of conveying the material.


Application materials

River pebbles crushing and making sand

Lead and zinc ore crushing and grinding powder

Limestone crushing and grinding powder

Barite grinding

Calcite grinding powder


Technical Parameters

Model


Maximum Feeding Granularity (mm)

Capacity

(t/h)

Motor Power (kw)

Installation Slope (°)

Total Weight (kg)

Chute Dimension (mm)

Outer Dimension

(L×W×H)(mm)

GZD-650×2300

300

80

1.1×2

10

2798

650×2300

2300×1360×780

GZD-750×2500

350

100

1.1×2

10

3260

750×2500

2500×1460×780

GZD-850×3000

400

120

3×2

10

3607

850×3000

3110×1800×1600

GZD-1000×3600

500

150

5.5×2

5

3895

1000×3600

3850×1950×1630

GZD-1100×4200

580

240

5.5×2

5

4170

1100×4200

4400×2050×1660

GZD-1100×4900

580

280

7.5×2

5

4520

4900×1100

5200×2050×1700

GZD-1300×4900

650

450

11×2

5

5200

4900×1300

5200×2350×1750

GZD-1500×5600

1050

450-800

12×2

10

7500

1500×5600

5700×2000×1750
