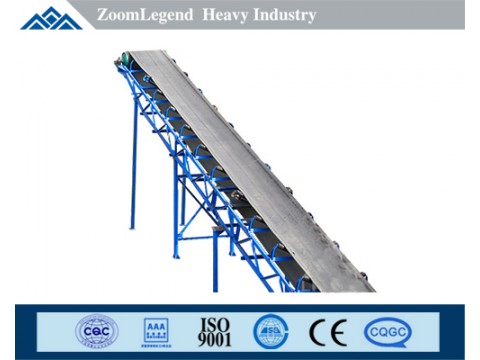

High quality good price Belt Conveyor

Click image to view original image
Brand: zoomlegend
Belt width: 500mm
Conveyor speed: 1.25-2m/s
capacity: 40-80t/h
Price: 3500.00USD/set
Min.Order: 1 set
Supply 120 set
Delivery: Shipment within 25 days since the date of payment
Address: China
Valid until: 2021-01-17 [Expired]
Updated on: 2020-05-22 09:39
Hits: 9775
Company Detail


Details

Brief introduction

The belt conveyor can be used in the range of environmental temperature from -20℃ to +40℃, and the temperature of conveying materials is below 50℃.In industrial production, belt conveyor can be used as a link between production machinery and other equipment to form continuous production, so as to realize the continuity and automation of production, improve productivity and reduce labor intensity.


Advantages

1.High adaptability and stability

Can adapt to the environment temperature -20℃ to +40℃, conveying material temperature below 50℃. “人”-shaped belt machine, effective anti-slip, enhance the stability of work.

2.Various models and flexible use

According to different conveying process requirements, it can be either a single conveying system or a combination of several conveying systems, or a horizontal or inclined conveying system with other conveying equipment.

3.Simple structure

Simple structure, standardized parts, quick maintenance and operation.According to the principle of friction transmission, the conveyor belt has large capacity, long transportation distance, stable transportation and low energy consumption.

Technical parameter

Belt width (mm)

Conveyor length(m)/ power(kW)

Conveyor speed(m/s)

Conveying capacity(t/h)

400

≤12/2.2

12-20/2.2-4

20-25/3.5-7.5

1.25-2.0

30-60

500

≤12/3

12-20/3-5.5

20-30/5.5-7.5

1.25-2.0

40-80

650

≤12/4

12-20/4-5.5

20-30/5.5-11

1.25-2.0

80-120

800

≤10/4

10-15/4-5.5

15-30/5.5-15

1.25-2.0

120-200

1000

≤10/5.5

10-20/5.5-11

20-40/11-22

1.25-2.0

200-320

1200

≤10/7.5

10-20/7.5-15

20-40/15-30

1.25-2.0

290-480

1400

≤10/11

10-20/11-22

20-40/22-45

1.25-2.0

400-680

1600

≤10/15

10-20/22-30

20-50/30-75

1.25-2.0

600-1080
