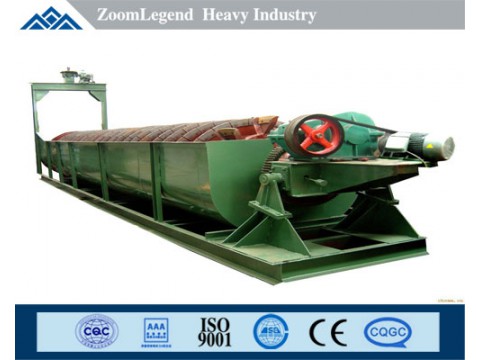

Click image to view original image
Product Introduction
Spiral classifier is the machine that discharges sand by spiral rotation. It has single spiral classifier and double spiral classifier according to number of the screw. It has high weir and low weir according to the depth of spiral blades in the overflow surface. It's widely applied to concentrator together with the ball mill which forms closed circuit distribution sand or to classify sand, fine cement, and slurry or to remove cement and dewater. It's featured by simple structure, reliable and convenient operation.
Working Principle
Spiral classifier is by way of different size of solid particles and gravity. Thus, based on the principle of different speed of sedimentation in the liquid, fine particles float out of the water while coarse particles settle down in the tank. It's the classifier by pushing materials upward spirally and sending coarse materials to the inlet by spiral blades and discharging fine materials from the overflow tube. The base adopts channel steel and the body is welded by steel plate. The water head and bearing head of the spiral shaft adopt wear-resistant pig iron sleeve and the lifting device has electrical and manual types.
Performance Characteristics
1. It's used to separate the stone powder that exceeds guidelines in dry sand making production, which can easily control the content of stone powder and satisfy the needs of consumers.
2. It's applied to dry large and medium-sized sand production line.
3. The content of stone powder of 0.00-0.75mm is adjustable from 2% to 15%.
4. The quality of stone powder is easy to control with convenient, flexible and reliable fineness.
5. With inner lining tile, the maintenance ratio is low.
6. It adopts frequency conversion control technology with simple operation.
Model
|
Model |
Content |
|
2 |
Double Spiral, No note for single spiral |
|
F |
Spiral Classifier |
|
|
Structure, G is high weir, C is sinking type |
|
|
Spiral Diameter, Unit dm |
Technical Parameter
|
Model |
Spiral Diameter mm |
Spiral Rotary Speed r/min |
Flume Length ≤mm |
Power kw |
Reference Size mm |
Reference Weight t |
|||
|
For Transmission |
For Lifting |
Length |
Width |
Height |
|||||
|
FG-5 |
500 |
8.5~15.5 |
4500 |
1.1 |
— |
5430 |
680 |
1480 |
1.6 |
|
FG-7 |
700 |
4.5~9.9 |
5500 |
3.0 |
— |
6720 |
980 |
1820 |
2.7 |
|
FG-10 FC-10 |
1000 |
3.5~7.6 |
6500 8400 |
5.5 7.5 |
— |
7590 9600 |
1240 1240 |
2380 2680 |
4 6 |
|
FG-12 FC-12 2FG-12 2FC-12 |
1200 |
4~6 |
6500 8400 6500 8400 |
7.5 7.5 15 15 |
2.2 2.2 4.4 4.4 |
8180 10370 8230 10370 |
1570 1540 2790 2790 |
3110 3920 3110 3920 |
8.5 11.0 15.8 17.6 |
|
FG-15 FC-15 2FG-15 2FG-15 |
1500 |
4~6 |
8300 10500 8300 10500 |
7.5 7.5 15 15 |
2.2 2.2 4.4 4.4 |
10410 12670 10410 12670 |
1880 1820 3390 3370 |
4080 4890 4080 4890 |
12.5 16.8 22.1 30.7 |
|
FG-20 FC-20 2FG-20 2FG-20 |
2000 |
3.6~5.5 |
8400 12900 8400 12900 |
11-15 11-15 22-30 22-30 |
3 3 6 6 |
10790 15610 11000 15760 |
2530 2530 4600 4600 |
4490 5340 4490 5640 |
20.5 28.5 35.5 48.7 |
|
FG-24 FC-24 2FG-24 2FG-24 |
2400 |
3.67 |
9130 14130 9130 14130 |
15 18.5 30 37 |
3 4 6 8 |
11650 16580 12710 17710 |
2910 2930 5430 5430 |
4970 7190 5690 8000 |
25.7 41.0 45.8 67.9 |
|
2FG-30 FC-30 |
3000 |
3.2 |
12500 14300 |
40 40 |
8 8 |
16020 17091 |
6640 6640 |
6350 8680 |
73.0 84.8 |
