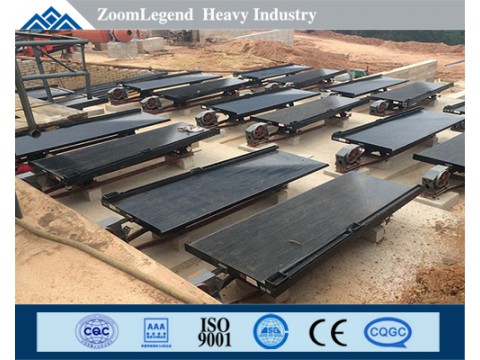

Product Introduction
Shaking Table is to separate fine and ultrafine particles with high accuracy. The ratio of enrichment reaches to 300 times when separating low grade tungsten and stannum; the separation efficiency is higher than that of other heavy-duty separators. It’s mainly used to separate tungsten, stannum, tantalum, niobium, chromium and other non-ferrous metal, rare metal and precious metal as well as iron, manganese and coal. The size of effective separation is 3-0.019mm for metal and the upper limit of 10mm for coal.
Working Principle
The separation is done on the oblique bed surface with spoke. Particles are fed from the upper feed tank and washing water is filled horizontally at the same time. Under gravity, action of water flow and inertia and friction produced by reciprocating bed surface, particles are laminated by specific gravity and granularity and move directly and horizontally along the oblique bed surface. Thus, different particles flow down from side A to side B in sector shape and are discharged respectively from the concentrate end and tailings outlet. Finally, they are separated as concentrate, middling and tailings.
Performance Characteristics
1. High ratio of enrichment up to more than 100 times;
2. Finished concentrate and tailings can be acquired once only;
3. High stiffness and strength;
4. Low ratio of water absorption without adding weight;
5. Good grindability of working surface;
6. Chemical corrosion resistance and acid and alkali resistance without considering the drugs in the slurry as harmful;
7. Good adaptability to climate and stable shape;
8. Good performance of separation and stable index;
9. It keeps assembly dimension of wood bed surface with mutual exchange.
Technical Parameter
Model |
Feeding Size mm |
Capacity t/d |
Bed Surface Dimension L×W mm |
Bed Surface Area ㎡ |
Horizontal Slope ° |
Power kw |
Weight kg |
Coarse Sand Shaking Table |
2-0.5 |
20-35 |
4395×1825 |
7.4 |
2.5-4.5 |
1.1 |
1015 |
Fine Sand Shaking Table |
0.5-0.074 |
10-20 |
1.5-3.5 |
1030 |
|||
Slime Shaking Table |
0.07-0.019 |
3-10 |
1-2 |
1065 |
|||
Fine Slime Shaking Table |
0.0037-0.019 |
5-15 |
1-1.15 |
1065 |
