Introduction

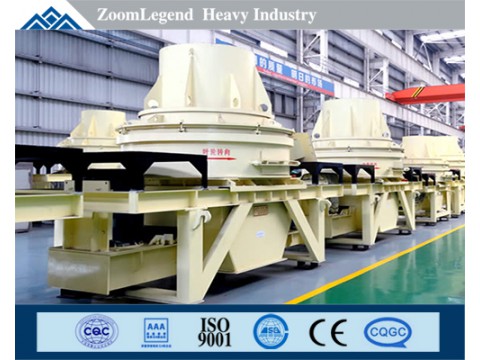

Sand making Equipment is the core equipment of construction, mining, metallurgy industry, highway, railway, bridge, water and electricity, mineral powder grinding field and machine sand industry at home and abroad.
Characteristic
1. Adopts riveting technology, increase the strength and toughness of the body, effectively reduce the resonance of the machine.
2. Hydraulic maintenance arm, greatly reduce the maintenance cost.
3. A variety of crushing methods, to meet the needs of different materials crushing.
4. imported bearing is adopted to ensure the stable operation of the machine.
5. Double oil pump design, only one oil pump works in normal use, only when the pressure and flow do not reach the set value, the second oil pump starts works. Or when the first oil pump fails, the second oil pump is automatically opened to ensure the normal operation of the main engine.
6. New impeller design, optimize the flow of materials.In the same power, than the old equipment output improve 30%.
Technical Parameter
Model |
Max.Feed size(mm) |
Power(kw) |
Impeller Rotary Speed (r/min) |
Capacity(t/h) |
Outer size(mm) |
Weight (include motor)(t) |
PCL-750 |
45 |
2×55 |
1700-2000 |
50-90 |
3300*1800*2440 |
7.3 |
PCL-800 |
55 |
2×75 |
1400-1620 |
80-150 |
3750*2120*2090 |
12.1 |
PCL-900 |
65 |
2×90 |
1300-1550 |
100-180 |
3750*2300*2660 |
13.6 |
PCL-1050 |
80 |
2×(132-160) |
1200-1400 |
180-350 |
4480*2450*3906 |
16.9 |
PCL-1250 |
100 |
2×(220-250) |
1000-1100 |
310-580 |
4563*2650*3716 |
22 |
PCL-1350 |
110 |
2×(250-280) |
900-1000 |
400-650 |
5340*2940*3650 |
26 |
