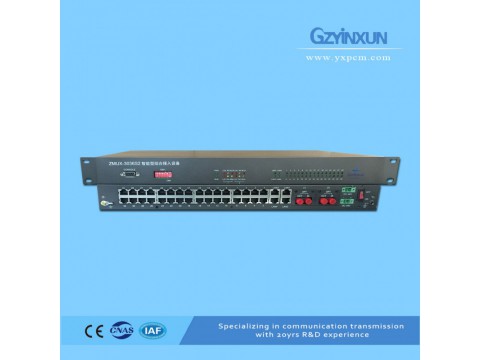

ZMUX-3036S2 is interface modular design, and supports very flexible configuration, according to the customers’ requirement. The business interface module is a single card, to meet the needs of customers. It has dual fiber interface, 1+1 back up protection and with network management function.
It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. The device has indicator light, which can show the operating status of the equipment. The device is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.
* fiber optic 1+1 back up protection
* 1-30service interfaces,4 port Ethernet(physical isolation),1 module corresponding to 1 channel user interface, customize requirements
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.
* flexible configuration and expansion
* supports the real-time monitoring function of the working status of central office device's and the remote device's built-in power supply, and also supports the real-time monitoring function of the external Emerson switching power supply working state.
* support centralized monitoring system,optional network management function, monitor network configuration information,fiber link status, fiber protection status, user interface status, etc.
* AC220V/DC-48V/AC220V+DC-48V
ZMUX-3036S2 is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is very stable and reliable, international standard. We support ODM, OEM, technical cooperation
