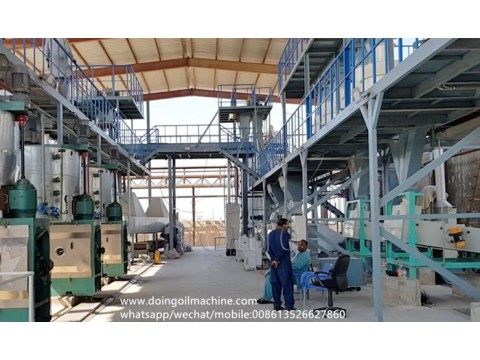

High oil yield vegetable oil processing machine manufacturing plant turnkey project with low cost

Click image to view original image
Brand: DOING
Certification: CE&ISO
Warranty: 1 Year
Condition: New
Price: 28000.00USD/set
Min.Order: 1 set
Supply 15 set
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-12-17 14:02
Hits: 62359
Buy
Company Detail


Details

High oil yield vegetable oil processing machine manufacturing plant turnkey project with low cost

Product Description

Vegetable oil processing machine manufacturing plant has two types: cooking oil pressing plant and cooking oil solvent extraction plant. Which method used depends on your requirement and the capacity you want.

Henan Doing Company supplies the vegetable oil processing machine manufacturing plant with the input capacity from 10tons/day to 2000tons/day.

The whole vegetable oil processing machine manufacturing plant includes pretreatment plant, solvent extraction plant and refinery plant.

Oil seeds pretreatment process of vegetable oil processing machine manufacturing plant:

Oil seeds pretreatment and prepressing section is the basic parts for a vegetable oil processing machine manufacturing plant.This section includes:cleaning,crushing,soften,flaking,roaster etc process to adjust the oil seeds into the best condition for oil pressing,easy to press oil out and easy for next cooking oil production section.

a. Cleaning device:remove the raw material groundnut in various impurities, such as: iron, stones, clump, such as the plant leaf, clean up till impurity content does not eceed 0.2%.

b.Crushing machine: groundnut is crushed into 6-8 pieces. In order to meet the requirements of crushing, the groundnut is suitable for crushing with the moisture of 7% to 12%.

c. Softening process:the purpose of softening is to adjust the moisture and temperature of oil, and make it soft.

d.Flaking process: rolling raw material into flakes, and the purpose is to increae surface area, destroy the groundnut cell tissue, shorten the way of oil out from cake.

e:Cooking process: use steam cooking, inject direct steam and cook the flakes to meet the requirement of oil press.

f.Pre-press: press the flakes to leave about 16%-18% in the cake. The cake will go to etraction process.

Cooking oil solvent extraction process of vegetable oil processing machine manufacturing plant:

After the pre-treatment, the next step is solvent extraction, which is using the solvent to exact oil from the groundnut cakes. By this kind of technology, the residual oil ratio in the oil meal is less than 1%.

1. Solvent pumps: continuously spray solvent to the rotary-type etractor

2. Roary etractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mied oil).

3. DTDC: usd to separate the solvent from the wet meal.

4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

5. Miscella tank 2nd: the purified miscella will be pumped into it.

6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.

Cooking oil refining process of vegetable oil refining machine manufacturing plant:

After solvent extraction, there are some impurities in crude cooking oil. To get the higher quality final product oil, the crude cooking oil should be refined by cooking oil refinery plant.

It includes four steps of Degumming-Deacidification-Decolorization-Deodorization.

And there are three types of the refinery equipment: batch type, semi-continuous type and full-continuous type.

Company Information

750-527



Henan Doing Mechanical Equipment Co. ,ltd is a leading manufacturer specialized in vegetable oil extraction machine, peanut oil extraction machine, soybean oil extraction machine, sunflower oil extraction machine, rapeseed oil extraction machine, rice bran oil extraction machine, sesame oil extraction machine, palm oil extraction machine and other oil seeds extraction machine.Our company service includes:technology design, installation and debugging, technical training, relocation of oil plant, technology reform and turnkey project.

Our vegetable oil extraction machine have gained many achievements and awards. And we have installed edible oil extraction machine in more than 20 countries over the world. Such as Malaysia, Indonesia, Nigeria, Liberia, Thailand, Congo, Zambia and Uzbekistan and so on.
